Cox Reels
Coxreels 1175 Series Hand Crank Hose Reel
Supports 1" ID hose at lengths up to 200', available with solid steel direct hand crank or a bevel gear hand crank
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

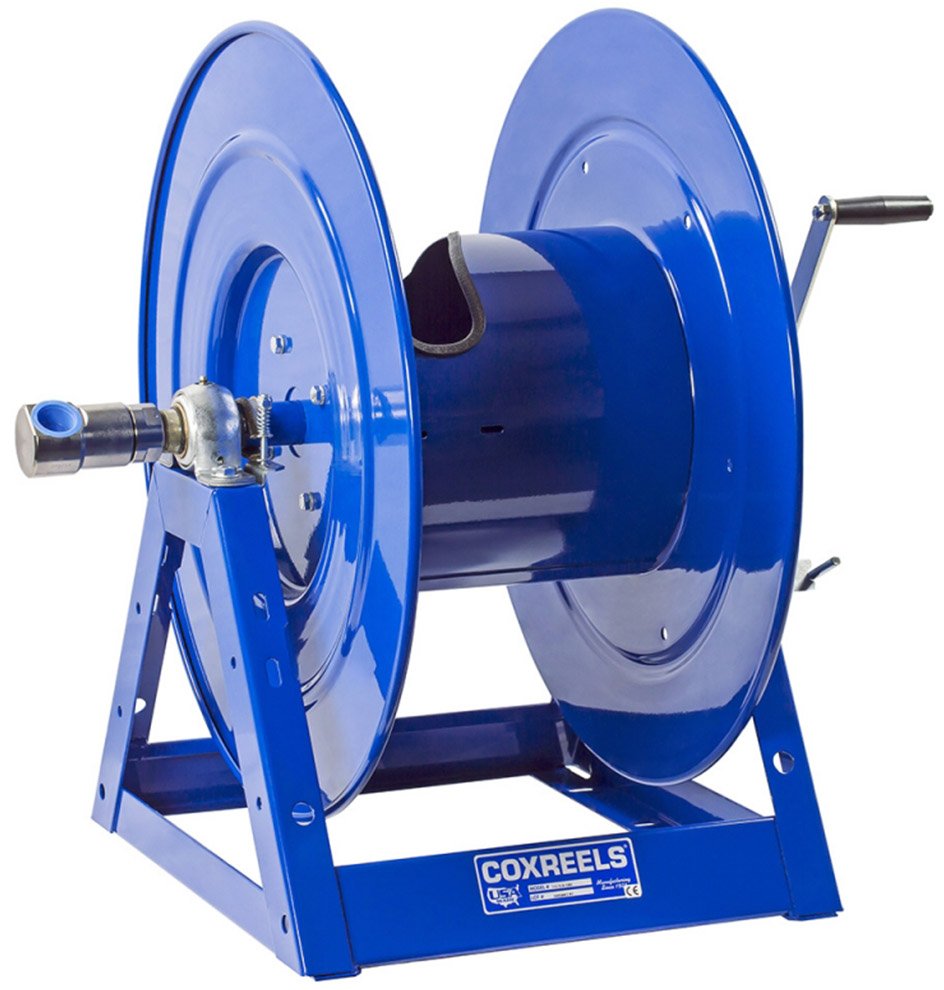

The Coxreels 1175 Series Hand Crank Hose Reel is a popular design in the industry, with a larger chassis to accommodate bigger hose capacities and diameters. It has a strong, one-piece, all-welded “A” frame base, and a low-profile outlet riser with an open drum slot design for smooth and even hose wraps around the drum.
Overview and Features
Features
- Up to 3000 PSI working pressure
- CNC welded 12 gauge steel a-frame base
- Two models available:
- Solid steel direct hand crank
- Bevel gear hand crank with removable handle
- Nickel-plated steel 90° full-flow NPT swivel
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
- CPC powder coat finish
- Hose not included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Solid steel direct hand crank, Bevel gear hand crank with removable handle |
|---|---|
| Max Pressure | 3000 PSI |
| Supported Hose Diameter | 1" ID, 1-7/16" OD |
| Supported Hose Length | 50', 100', 125', 135', 150', 200' |
