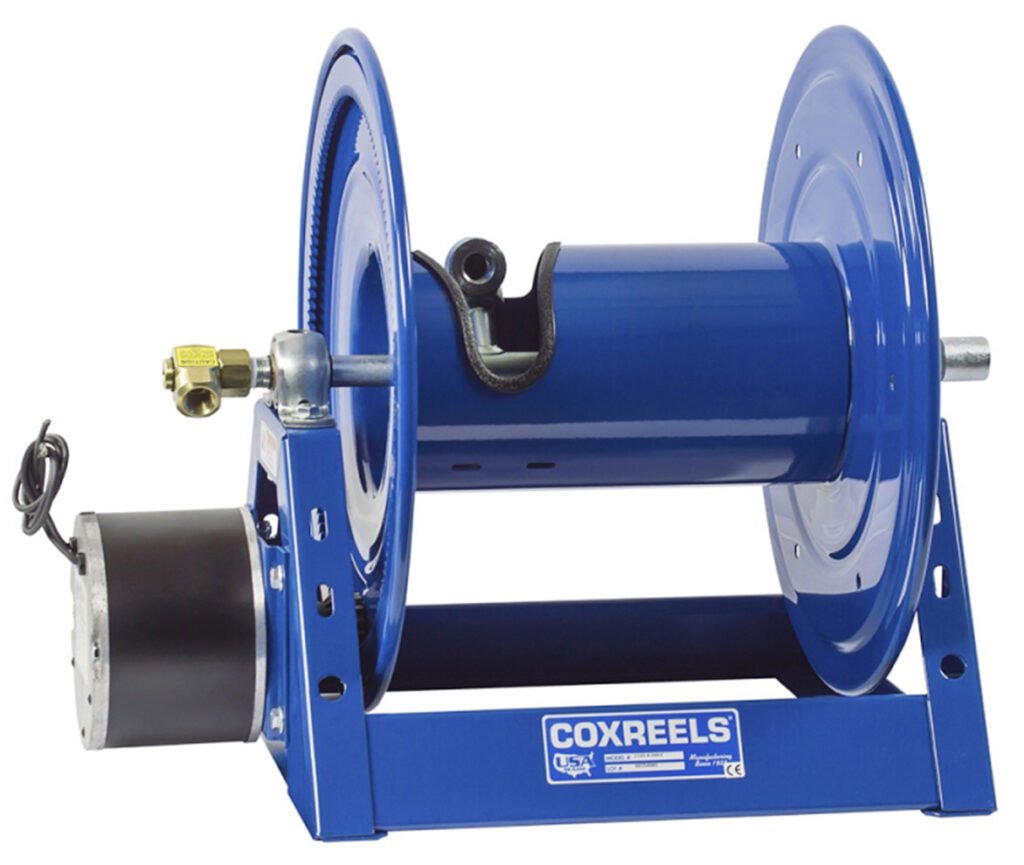

Coxreels 1125 Series Motorized Hose Reel
9 motor options, 3000 PSI operating pressure, 35' to 500' hose capcity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coxreels 1125 Series Motorized Hose Reel has a robust one-piece “A” frame base that is welded together and a low-profile outlet riser. The open drum slot and outlet riser design ensures that the hose is wrapped smoothly and without crimping, resulting in a flat and even wrap.
Overview and Features
Features
- Up to 3000 PSI working pressure
- CNC welded 12 gauge steel a-frame
- 9 motor options:
- Aluminum 4-vane motor
- Cast iron 6-vane air motor
- 12 VDC motor, 1/3 HP
- 115 VAC motor, 1/2 HP
- 24 VDC motor, 1/2 HP
- 12 VDC motor, 1/2 HP
- 24 VDC motor, 1/3 HP
- 230 VAC motor, 1/2 HP
- Hydraulic rewind
- Machined solid brass 90° full-flow NPT swivel
- Nickel-plated steel on 1″ ID models
- Permanently lubricated bearings
- 2-year limited manufacturer warranty
- CPC powder coat finish
- Hose not included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Aluminum 4-vane air motor, Cast iron 6-vane air motor, 12 VDC motor, 1/3 HP, 115 VAC motor, 1/2 HP, 24 VDC motor, 1/2 HP, 12 VDC motor, 1/2 HP, 24 VDC motor, 1/3 HP, 230 VAC motor, 1/2 HP, Hydraulic rewind |
|---|---|
| Max Pressure | 3000 PSI |
| Supported Hose Diameter | 1/2" ID, 7/8" OD, 3/4" ID, 1-1/4" OD, 1" ID, 1-7/16" OD |
| Supported Hose Length | 35', 50', 75', 100', 175', 200', 250', 325', 450', 500' |
