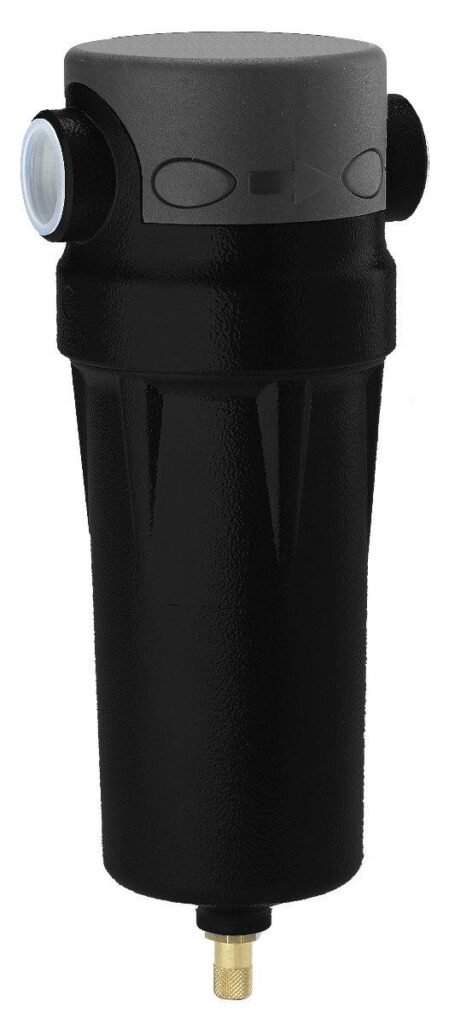

Compressor World C Series Coalescing Filters
The Oasis C series filter is designed to remove solid and oil particles down to 1 micron with a residual carryover of 1mg/m3 .
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Oasis C series filter is designed to remove solid and oil particles down to 1 micron with a residual carryover of 1mg/m3 . The element is designed to coalesce oil mist and intercept small particles. The element consists of inner and outer stainless steel cages; a pleated element and PVC outer cover designed for withstand 212°F temperatures and UV. The C filter can be installed as a stand alone filter or in series with the Oasis P particulate filter.
Overview and Features
Features
- Element Class: C
- Type: Coalescing
- Filtration Grade: 1 micron
- Max oil content: .1 mg/m3
- Pressure Drop Dry: 1.45 psid
- Pressure Drop Wet: 2.32 psid
- Pressure Drop Max: 10 psid
- Max working pressure: 232 psig
- Max working temperature: 212 degrees F
- ISO 8573-1
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Flow Rate | 18 CFM, 35 CFM, 64 CFM, 106 CFM, 120 CFM, 177 CFM, 254 CFM, 336 CFM, 441 CFM, 583 CFM, 671 CFM |
|---|---|
| Connection Size | 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT, 2-1/2" NPT |
| Micron Rating | 1 Micron |
| Pressure Rating | 232 PSI |
