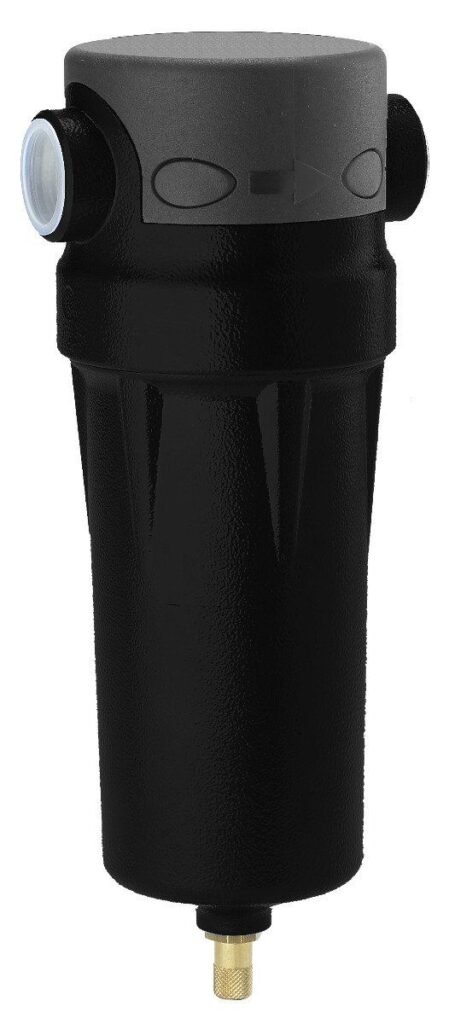

Compressor World AC Series Carbon Filters
The AC series filter is designed to remove solid and oil particles down to .008mg/m3 (used as a final filter)
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Oasis AC series filter is designed to remove oil vapor and oders. The activated carbon media will absorb residual vapors by causing them to adhere to the activated carbon grain molecules. The residual oil content is reduced to .008 mg/mg3 or less. The AC filters are installed post coalescing filter such as the C or CH. They are equipped with a manual type drain. The element is comprised of a thick carbon layer covered by a fiber coating. The media is supported by stainless steel mesh screens.
Overview and Features
Features
- Element Class: AC
- Type: Carbon
- Filtration Grade N/A
- Max oil content .008mg/m3
- Pressure Drop Dry 1.16 psid
- Pressure Drop Wet 1.74 psid
- Pressure Drop Max 10 psid
- Max working pressure 232 psig
- Max working temperature 140 degrees F
- ISO 8573-1
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Flow Rate | 18 CFM, 35 CFM, 64 CFM, 106 CFM, 120 CFM, 177 CFM, 254 CFM, 336 CFM, 441 CFM, 583 CFM, 671 CFM |
|---|---|
| Connection Size | 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT, 2-1/2" NPT |
| Micron Rating | .008mg/m3 |
| Pressure Rating | 232 PSI |
