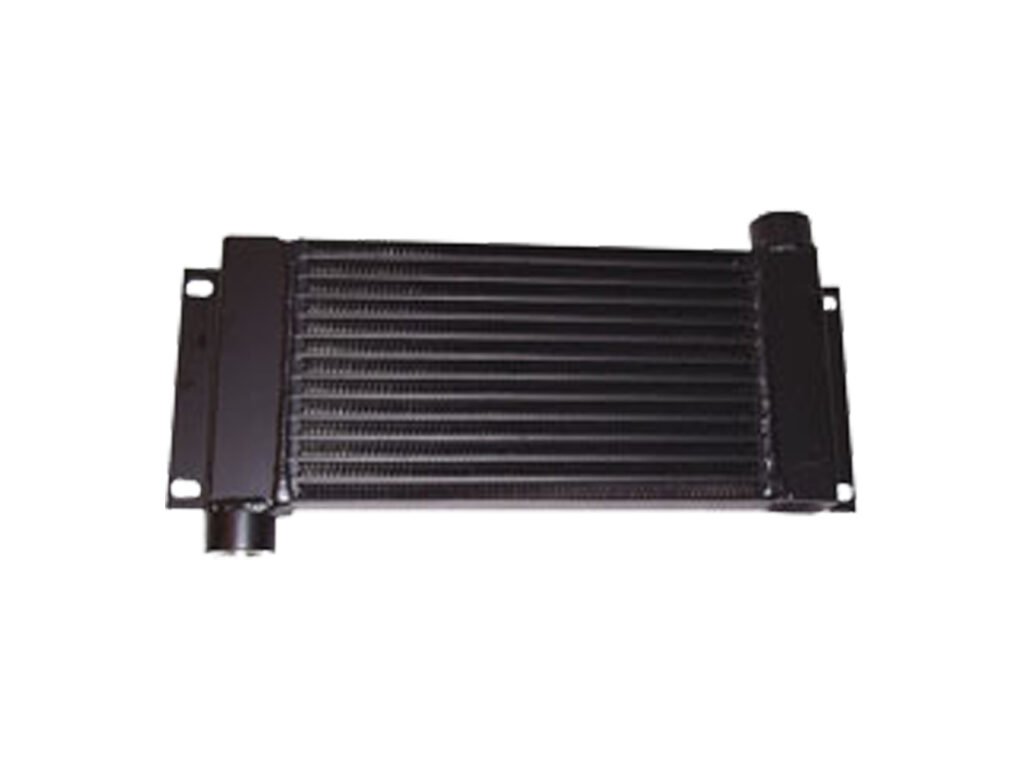

Compressed Air Systems Belt Guard Mounted Aftercooler
Aluminum material; installs downstream from the compressor
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Compressed Air Systems Belt Guard Mounted Aftercooler is designed to provide optimum cooling efficiency by using aluminum instead of the traditional copper tube and fin, providing discharge temperatures that in some cases can equal intake temperatures. The aftercooler is easy to mount and maintain owing to its simple design and two sided mounting brackets.
Overview and Features
Features
- 50 to 240 CFM capacity
- 290 PSI max. pressure
- 302°F max. inlet temperature
- 3/4 to 1 1/4 inlet/outlet size
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 50 CFM, 80 CFM, 150 CFM, 240 CFM |
|---|---|
| Inlet/Outlet Size | 3/4in, 1in, 1 1/4in |
