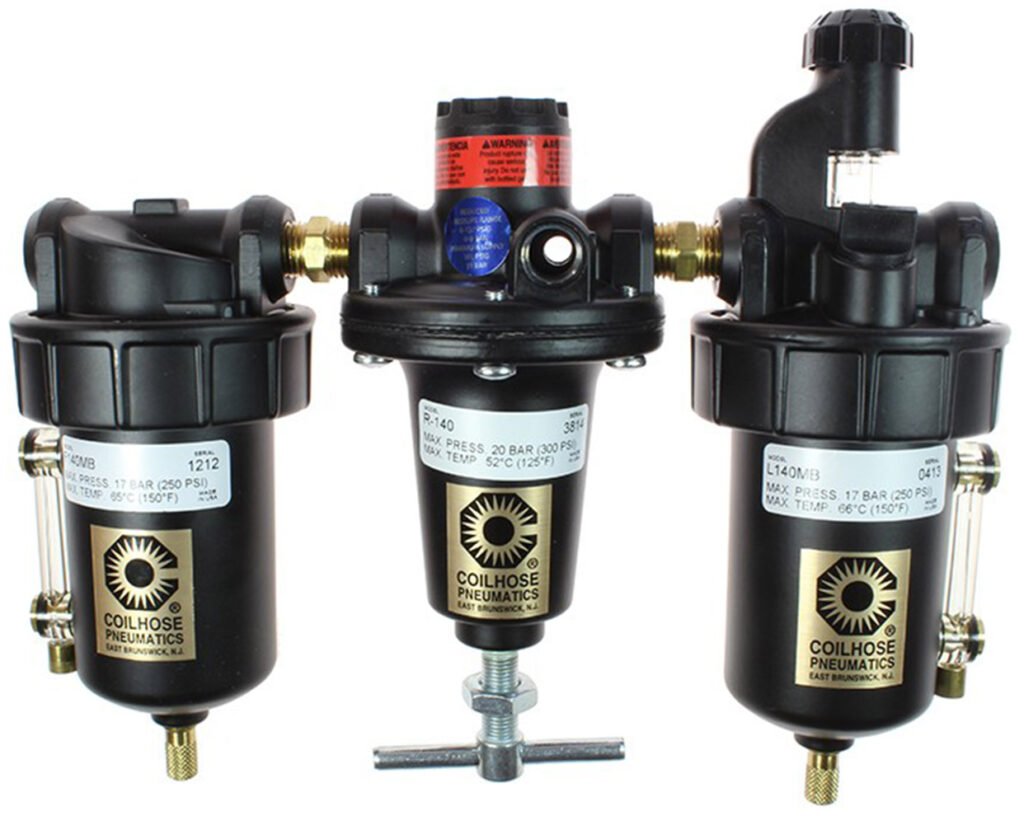

Coilhose Pneumatics General Purpose Series Regulator
Air regulator, filter, and lubricator combination for use in air compressor systems in industrial environments
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coilhose Pneumatics General Purpose Series Regulator provides the ability to filter, regulate, and lubricate compressed air systems in industrial and automotive environments. Available with port sizes from 1/4″ to 2″ and with polycarbonate or Zinc bowls.
Polycarbonate bowls are not compatible with certain chemicals. Please reference the Non-Compatible Chemical List in the documents tab for a listing of known chemicals that should not be in contact with the polycarbonate bowls.
Overview and Features
Features
- Port sizes from 1/4″ to 2″
- Polycarbonate or die-cast Zinc bowl
- Maximum Supply Pressures:
- Polycarbonate Bowl: 150 PSI
- Zinc Bowl: 250 PSI
- Maximum Operating Temperatures:
- Polycarbonate Bowl: 120°F
- Zinc Bowl: 150°F
- 40 micron filtration level (filter models only)
- Manual drain
- Die-cast Zinc body
- 0 to 125 PSI regulator adjustment range
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Regulator only, Regulator and air filter, Regulator, air filter, and lubricator |
|---|---|
| Port Size | 3/8", 1/2", 3/4", 1", 1/4", 1.5", 2" |
| Bowl Material | Polycarbonate, Die-cast Zinc, None |
