Coilhose Pneumatics

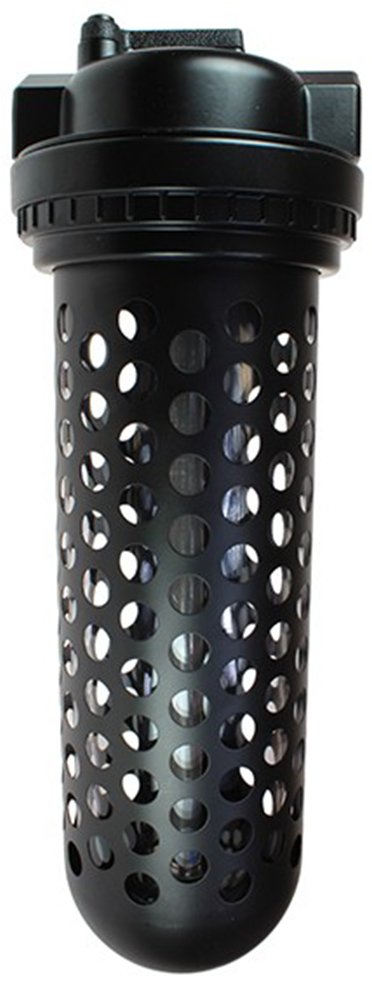

Coilhose Pneumatics Desiccant Air Dryer
Desiccant air dryer assembly with polycarbonate bowl rated for 10 SCFM at 150 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coilhose Pneumatics Desiccant Air Dryer removes the smallest traces of moisture from compressed air systems. Moisture absorbent desiccant beads remove moisture through the use of chemical reactions. The desiccant beads change color from blue to pink when saturated. The use of filter units with the air dryer is recommended. These units are especially effective for protecting laboratory instrumentation as well as spray painting/air lines that are exposed to freezing conditions.
Polycarbonate bowls are not compatible with certain chemicals. Please reference the Non-Compatible Chemical List in the documents tab for a listing of known chemicals that should not be in contact with the polycarbonate bowls.
Overview and Features
Features
- <1 PSI pressure drop
- 150 PSI max input pressure
- 10 SCFM max flow capacity
- 125°F max temperature
- Die-cast Zinc body
- Polycarbonate bowl
- Steel bowl guard
- 1/4″, 3/8″, and 1/2″ port sizes available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Port Size | 1/4", 3/8", 1/2" |
|---|
