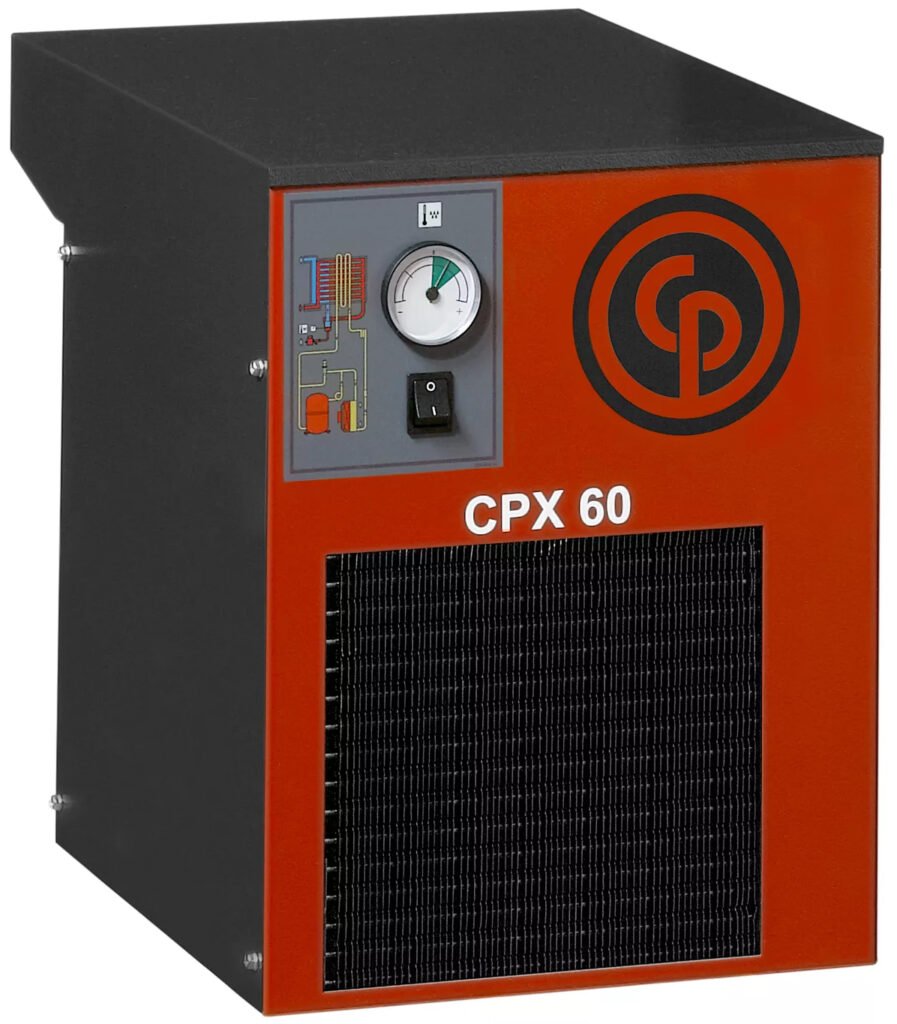

Chicago Pneumatic CPX Series Refrigerated Air Dryer
12.4 to 4238 CFM, 1 and 3 phase voltages, 203 or 232 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPX Series Refrigerated Air Dryer cools compressed air to remove the largest part of water content produced by compression. The operation of the CPX dryer is monitored by an electronic controller indicating all relevant information, including the status of the refrigerant dryer, status of the fan, and the dew point indication. An alarm display shows high or low dew point, fan probe failure (CPX 40 to 270), and a service reminder. The full refrigerant dryer range is equipped with a level-controlled condensate drain, a range using electronic sensors to discharge only condensate and without wasting any compressed air. By applying environmentally friendly gas types, the product has no impact on the ozone layer.
Overview and Features
Features
- 12.4 to 4238 CFM capacity
- 203 or 232 PSI maximum pressure
- 115/1/60, 230/1/60, and 460/3/60 voltage options
- 3/4″ to 3″ NPT or 4″ to 6″ ANSI flange connections
- Refrigerant:
- 12.4 to 64.4 CFM: R-134a
- 83 to 4238 CFM: R-410A
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 12.4 CFM, 30 CFM, 42.4 CFM, 64.4 CFM, 83 CFM, 106 CFM, 127 CFM, 145 CFM, 184 CFM, 353 CFM, 424 CFM, 530 CFM, 636 CFM, 848 CFM, 1060 CFM, 1237 CFM, 1589 CFM, 1766 CFM, 2204 CFM, 2472 CFM, 2966 CFM, 3496 CFM, 4238 CFM |
|---|---|
| Maximum Pressure | 232 PSI, 203 PSI |
| Voltage | 115/1/60, 230/1/60, 460/3/60 |
| Connection | 3/4" NPT, 1" NPT, 1.5" NPT, 2" NPT, 2.5" NPT, 3" NPT, ANSI 4", ANSI 6" |
