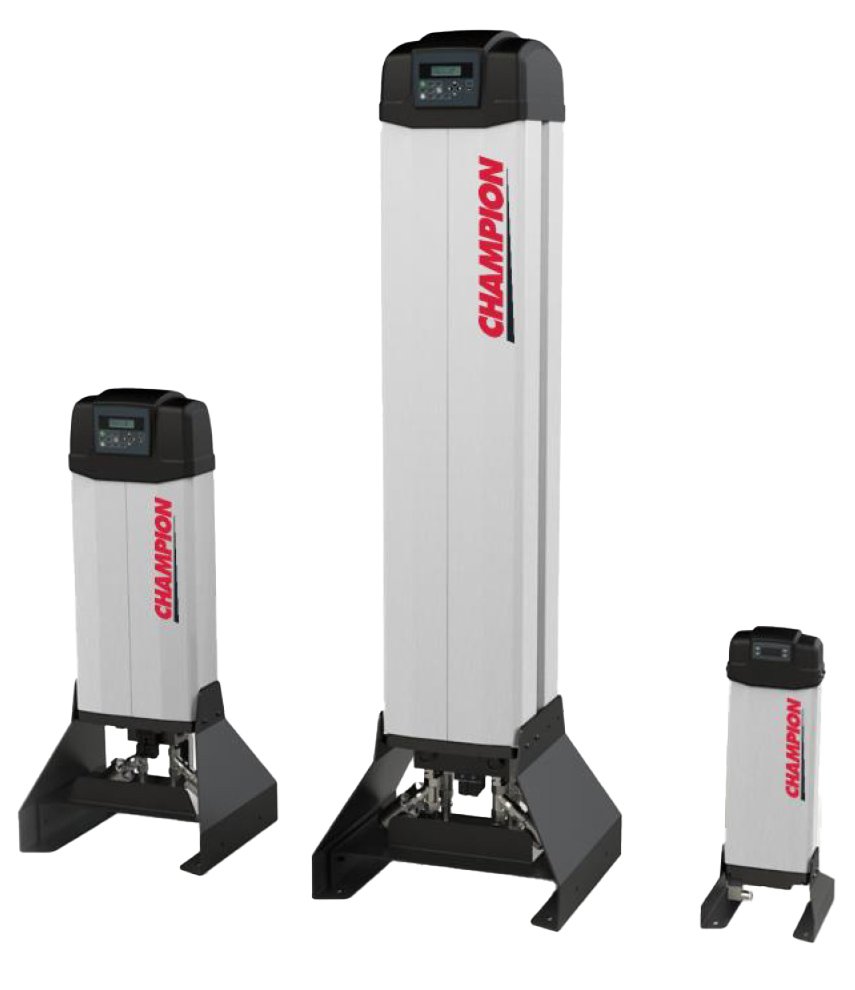

Champion XCML Series Modular Desiccant Air Dryer
3 to 177 SCFM dryer, -40°F dewpoint standard, 10 minute cycle time
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion XCML Series Modular Desiccant Air Dryer is a point-of-use design to treat only the required air for the task. Available in 3 to 177 SCFM models, these dryers are easy to install and use with simplified maintenance and reliable electronic controls. -40°F dewpoint is standard but for models above 24 SCFM, the dewpoint can be upgraded to -100°F.
Overview and Features
Features
- 3 to 177 SCFM
- -40°F dewpoint standard
- -100°F dewpoint optional (24 SCFM and up)
- 120°F max inlet air temperature
- 10 minute cycle time
- 200 PSIG max inlet pressure
- Optional energy management system (24 SCFM and up)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 3 SCFM, 9 SCFM, 15 SCFM, 24 SCFM, 32 SCFM, 41 SCFM, 59 SCFM, 88 SCFM, 118 SCFM, 147 SCFM, 177 SCFM |
|---|---|
| Options | None, Add Energy Management System, -100°F Dew Point |
