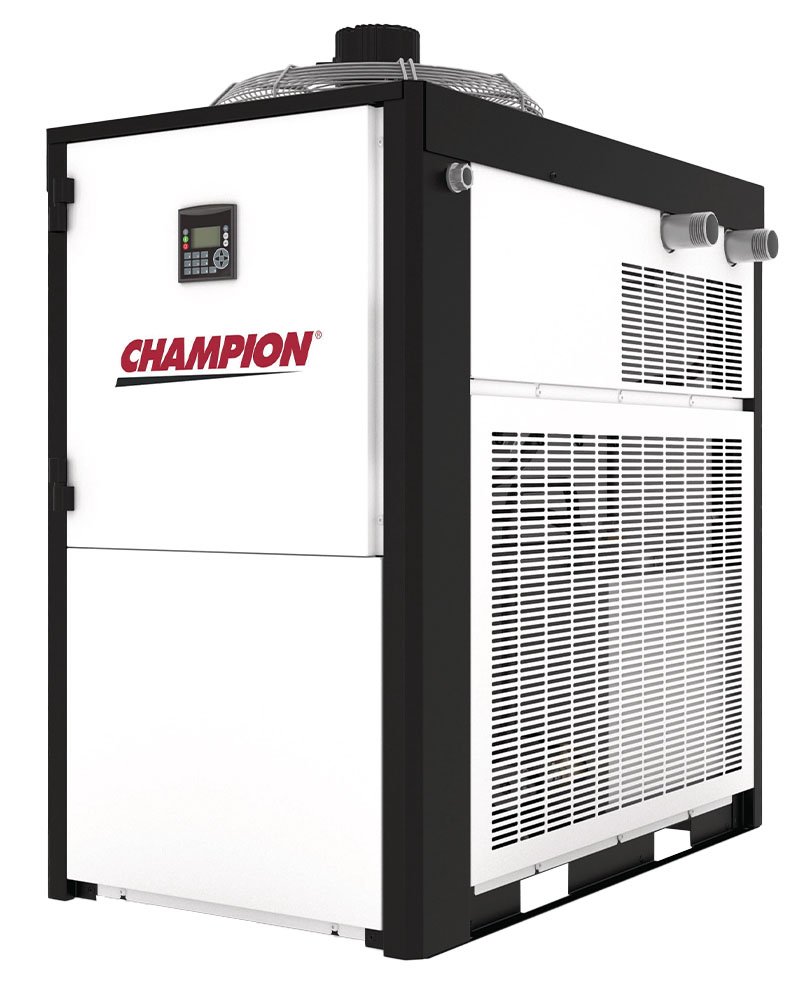

Champion XCCYA Series Cycling Refrigerated Dryer
10 to 1200 CFM cycling dryer, pre and post filers standard, 200 PSIG max operating pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion XCCYA Series Thermal Mass Cycling Refrigerated Dryer incorporates innovative features that make it a reliable, and energy efficient dryer. The XCCYA Series provides significant savings because it does not waste energy costs through continuous operation of its refrigeration system, as do traditional non-cycling dryers. Each component has been designed to provide durability plus maximum energy efficiency.
The XCCYA Series utilizes R513A refrigerant, achieving an 85% reduction in Global Warming Potential (GWP) for increased sustainability. The net effect is a GWP of less than 700.
Overview and Features
Features
- 10 to 1200 SCFM
- NEMA 1 Standard
- NEMA 4 configurations available (200 to 250 CFM only)
- Filtration:
- 300 to 1200 CFM models include integrated pre- and post-filtration
- 10 to 250 CFM models include ship-loose filters
- Maximum Inlet Air Temperature: 120°F
- Maximum Operating Pressure: 200 PSIG
- Reliable Solenoid Drain as standard
- Optional no-loss drain + monitoring upgrade
- Performance Testing: ISO Guidelines, CAGI ADF-100
- ETL-certified, UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, CSA 22.2 #60335-2-40
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 10 CFM, 18 CFM, 24 CFM, 35 CFM, 50 CFM, 75 CFM, 100 CFM, 125 CFM, 150 CFM, 200 CFM, 250 CFM, 300 CFM, 400 CFM, 500 CFM, 600 CFM, 700 CFM, 800 CFM, 1000 CFM, 1200 CFM |
|---|---|
| Voltage | 115/1/60, 230/1/60, 460/3/60 |
| Cooling | Air cooled, Water cooled |
| Options | NEMA 1, Electronic Drain Valve, NEMA 1, Electronic No Loss Drain, NEMA 4, Diff Press Monitor, Electronic Drain Valve, NEMA 4, Diff Press Monitor, Electronic No Loss Drain, NEMA 1, Solenoid Drain, Integral Pre/Post Filtration, NEMA 1, No-Loss Drain with Alarm, Integral Pre/Post Filtration with Pressure Drop Monitoring |
