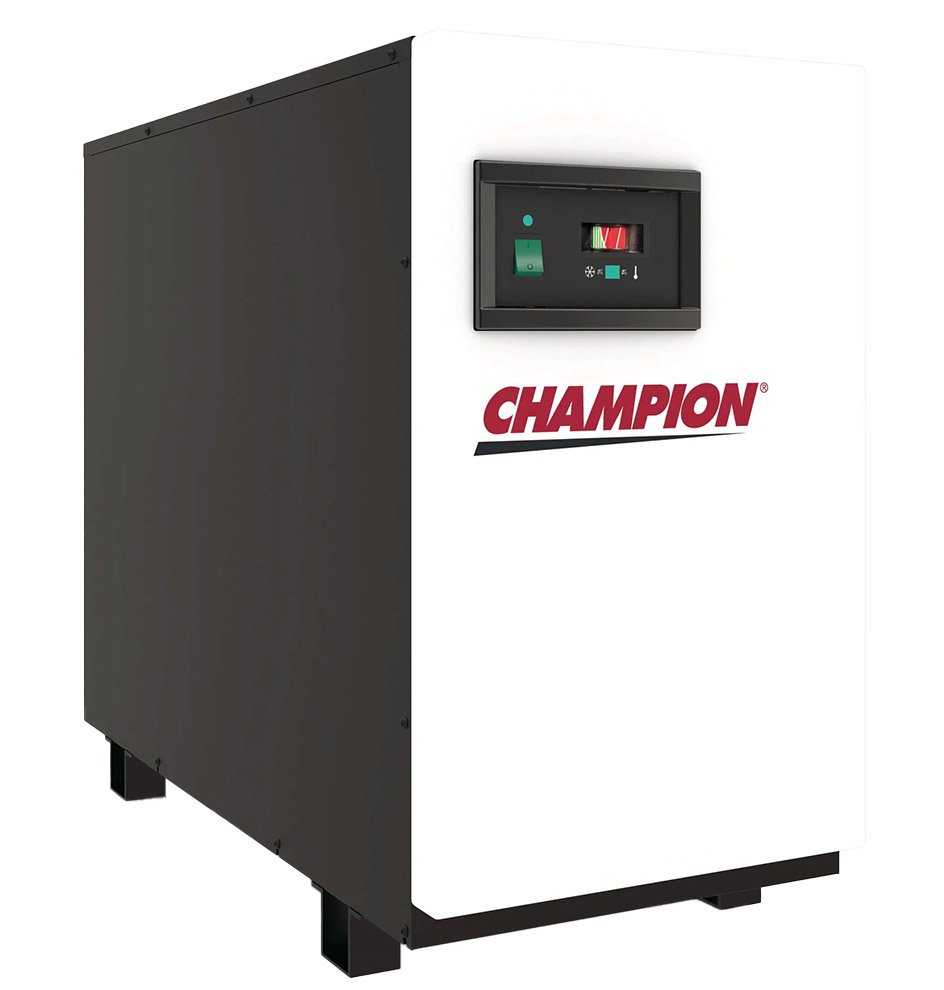

Champion CGDA Series Non Cycling Refrigerated Air Dryer
75 to 1200 SCFM, R513A refrigerant, ISO 8573-1 Air Quality, Class 5 to 6 pressure dew point
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion CGDA Series Non Cycling Refrigerated Air Dryer delivers reliable ISO 8573-1 Air Quality, Class 5 to 6 pressure dew point, and uses eco-friendly R513A refrigerant. The CGDA Series features a stainless steel cross‑flow heat exchanger and low pressure drop for energy efficiency. Certified to UL and CSA safety standards, they ensure performance, versatility, and compliance with environmental regulations.
Overview and Features
Features
- 75 to 1200 SCFM
- R513A refrigerant with low Global Warming Potential (GWP)
- Stainless steel cross‑flow heat exchanger
- Timed electric condensate drain
- Integral demister/separator
- Low pressure drop design
- Streamlined construction
- Optional Pre- and Post- Filter Package
- ETL Certified to UL60335-1 & 60335-2-40
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 75 CFM, 100 CFM, 125 CFM, 150 CFM, 200 CFM, 250 CFM, 300 CFM, 400 CFM, 500 CFM, 600 CFM, 800 CFM, 1000 CFM, 1200 CFM |
|---|---|
| Voltage | 115/1/60, 460/3/60 |
| Connection | 1" FNPT, 2" NPT, 3" Flange, 4" Flange |
| Filtration Package | None, Add pre-filer and after-filter |
