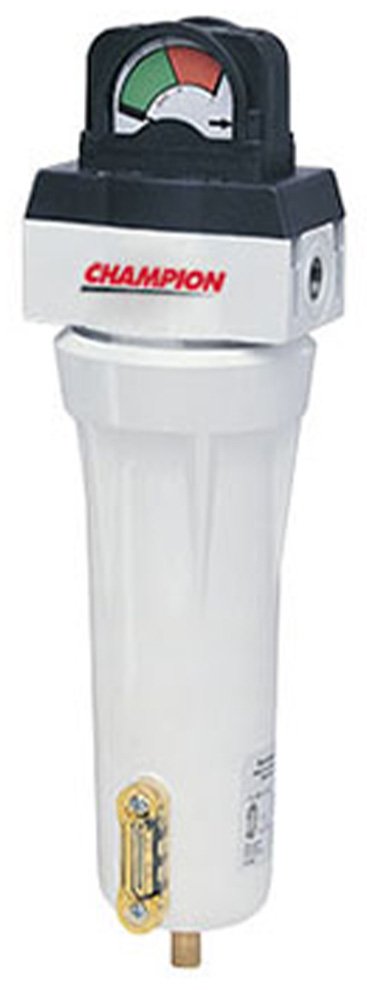

Champion CFL Series Compressed Air Filter
20 to 1250 SCFM capacities, 7 filter grades provide ISO 8573.1 standard air quality
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Overview and Features
Features
- Available in 7 filter grades:
- Grade A – Water Separator
- Grade B – Separator/Filter (3 micron, 5 ppm)
- Grade C – General purpose filter (1 micron, 1 ppm)
- Grade D – Dry particulate filter (1 micron Afterfilter)
- Grade E – High efficiency oil removal filter (.01micron,.008 ppm)
- Grade F – Maximum efficiency oil removal filter (.01 micron, .0008 ppm)
- Grade G – Oil vapor removal filter (.01 micron, .003 ppm)
- Housing:
- CFL 20 to 780 SCFM – Modular housing style
- CFL 625 to 1250 SCFM – Pressure vessel style
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 20 SCFM, 35 SCFM, 60 SCFM, 100 SCFM, 170 SCFM, 250 SCFM, 375 SCFM, 485 SCFM, 625 SCFM, 780 SCFM, 1000 SCFM, 1250 SCFM |
|---|---|
| Filter Grade | Dry Particulate Filter (1 micron Afterfilter), Mechanical Separator, Separator/Filter (3 micron, 5 ppm), Air Line filter (1 micron, 1 ppm), High Efficiency Oil Removal (.01micron,.008 ppm), Maximum High Efficiency Oil Removal (.01 micron, .0008 ppm), Oil Vapor Removal (.01 micron, .003 ppm) |
| Connection Size / Type | 3/8” NPTF, 1/2” NPTF, 3/4” NPTF, 1” NPTF, 1-1/2” NPTF, 2” NPTF, 2-1/2” NPTF, 3” NPTM |
| Drain Option | No Drain, Manual Drain, Internal Automatic Drain, Electronic Demand Drain |
| Pressure Gauge | Differential Pressure Slide, Differential Pressure Gauge, None |
| Liquid Level Indicator | None, Liquid Level Indicator |
| ASME Coding | None, ASME “U” Stamped Vessel |
