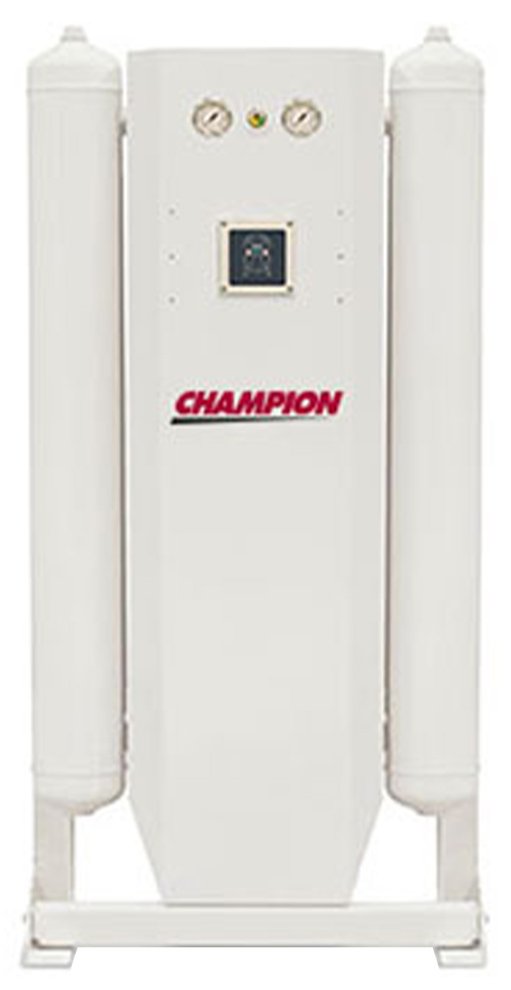

Champion CDT Series Heatless Desiccant Air Dryer
40 to 1350 CFM dryer with customizable dewpoints down to -100°F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion CDT Series Heatless Desiccant Air Dryer provides customizable dewpoints down to -100°F. The large desiccant beds ensure consistent dew points and the cleanable, stainless steel flow diffusers ensure even flow distribution and eliminate channeling through the bed. The tower design saves 98% of the heat of adsorption.
Overview and Features
Features
- 40 to 1350 CFM capacities
- 150 PSIG max working pressure
- 120°F max air inlet temperature
- Pressure relief valves on each tower mounted after flow diffusers
- Heavy-duty mufflers
- NEMA 4 electrical construction standard
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 40 CFM, 60 CFM, 90 CFM, 115 CFM, 165 CFM, 260 CFM, 370 CFM, 450 CFM, 590 CFM, 750 CFM, 930 CFM, 1130 CFM, 1350 CFM |
|---|---|
| Controls | Basic, Energy saving |
| Filter/Bypass Valves | Filters with no bypass, Filters with 3 valve bypass |
| Options | Dew Point Monitor (-148F), High Pressure 250 PSIG MWP, Sandblast and Epoxy Paint, Low Ambient Protection |
