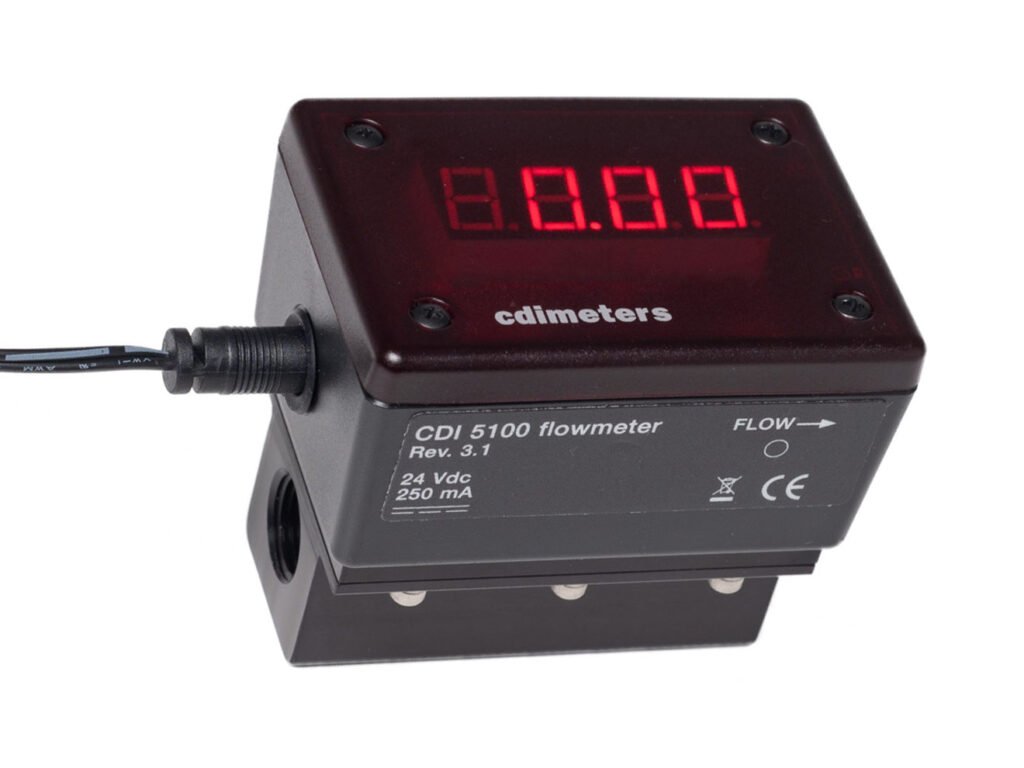

CDI Meters 5100 Series Inline Flow Meter
Weather resistant inline flow meter for use with 20 to 40 SCFM compressed air and nitrogen in point-of-use applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The CDI Meters 5100 Series Inline Flow Meter is designed for use with compressed air and nitrogen in low flow rate point-of-use applications. The CDI 5100 Series concentrates the flow into a small area to optimize the tradeoff between pressure drop and low-flow sensitivity. When used at 100 PSIG, it will create a pressure drop rate no greater than 1 PSI.
The flow is measured by the meter through the use of two probes, with one being kept at a warmer temperature than the other. It then determines and displays the mass flow rate in SCFM or equivalent units on the 4-digit LED display.
Overview and Features
Features
- 20 or 40 SCFM flow rate
- 200 PSIG max operating pressure
- 3/8″ or 1/2″ nominal connection
- 100V or 230 VAC
- 600 Ohms output resistance
- Optional RS-485 network output
- Weather-resistant and surge protected
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Flow Range | 20 SCFM, 40 SCFM |
|---|---|
| Connection | 3/8", 1/2" |
