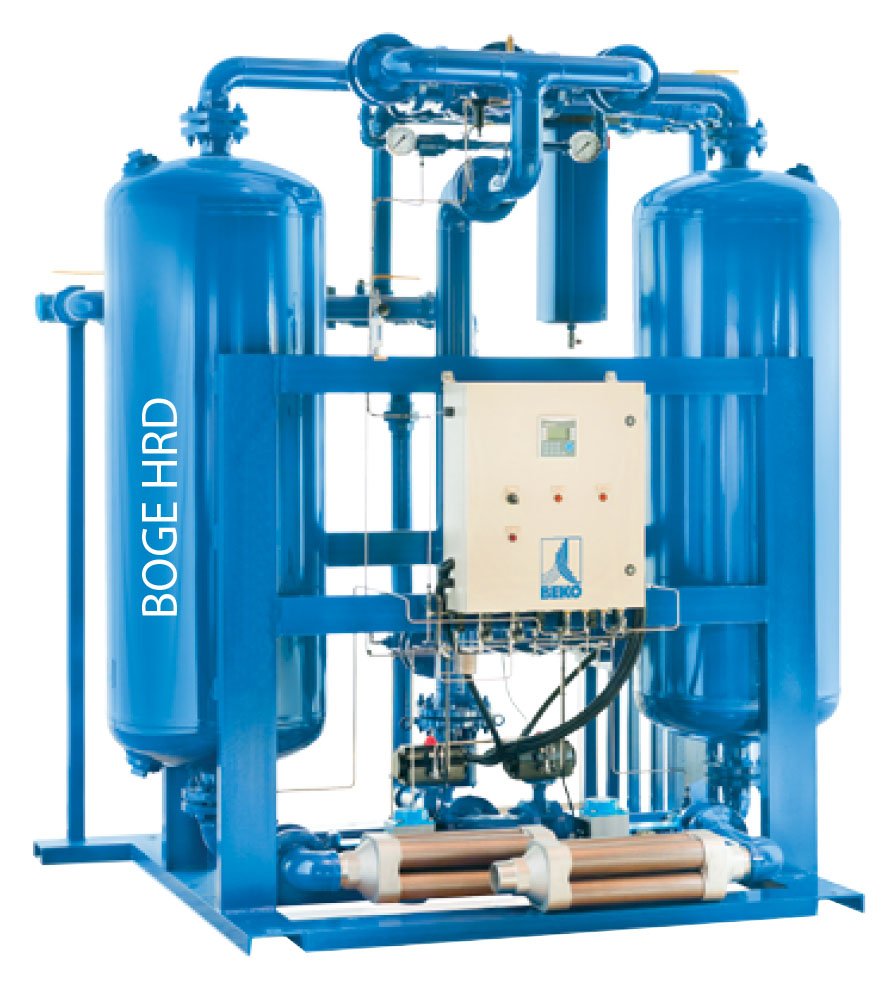

BOGE HRD Series Heated Desiccant Air Dryer
150 to 3000 SCFM, up to 150 PSIG, Class 2 -40°F pdp
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BOGE HRD Series Heated Desiccant Air Dryer features a fail-safe design in the event of power interruption, along with tower operating status lights and high quality non-lubricated air/gas inlet valves. The HRD series includes an advanced PLC controller to meet the needs of any application and is equipped with multiple safety and visual control features as standard. The programming of the PLC can be tailored specifically to the application.
Overview and Features
Features
- 150 to 3000 SCFM models
- Up to 150 PSIG
- Class 2 -40°F pressure dew point
- 460/3/60 voltage
- 0.01 μm coalescing inlet filter
- 1.0 μm outlet dust filter
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 150 SCFM, 250 SCFM, 350 SCFM, 500 SCFM, 750 SCFM, 1000 SCFM, 1250 SCFM, 1400 SCFM, 1600 SCFM, 2000 SCFM, 2500 SCFM, 3000 SCFM |
|---|---|
| Connection Size / Type | 1" NPT, 1-1/2" NPT, 2" NPT, 3" Flange, 4" Flange, 6" Flange |
