BOGE

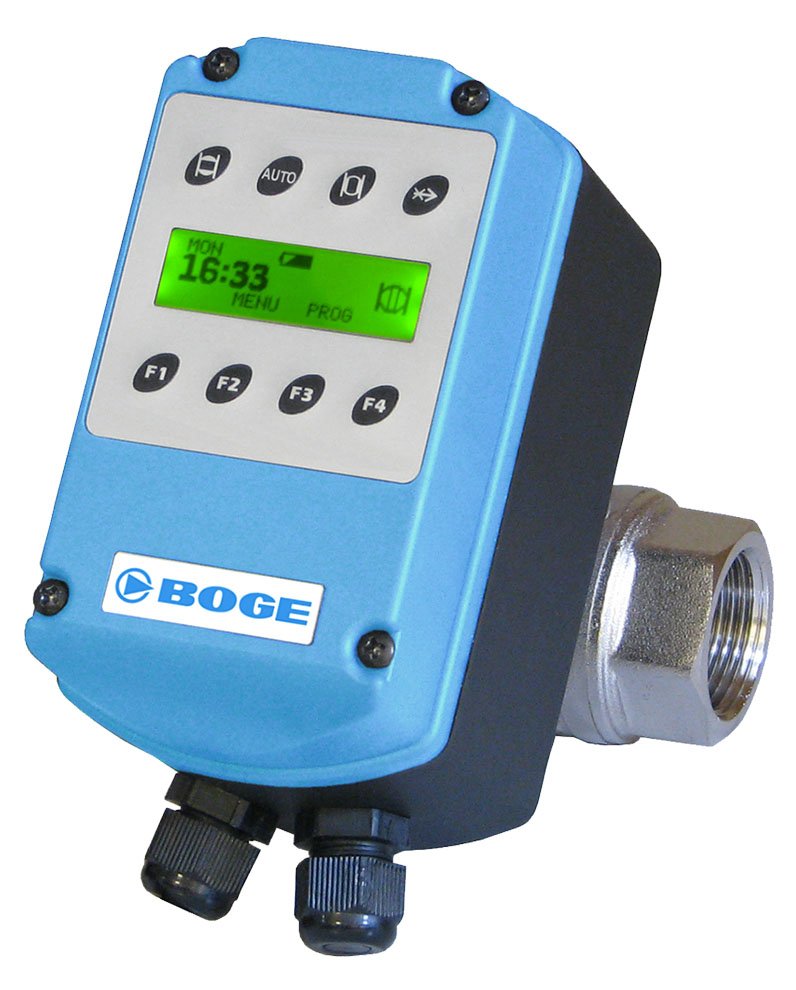

BOGE BLS Series Leak Stop
1" or 2" NPT connections, up to to 230 PSI, programmable up to 100 switching points per week
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BOGE BLS Series Leak Stop is a maintenance free, flexible programmable system capable of saving money resulting from ongoing compressed air system leaks. The BLS also prevents unnecessary compressor starts outside operating times, all drying and filtering activities are reduced, and the service life of the compressor system is extended.
Overview and Features
Features
- 0 to 230 PSI pressure rating
- Opening/closing time:
- 1″ inlet model: 30 sec
- 2″ inlet model: 105 sec
- NEMA 13 protection class
- Illuminated LCD display
- Programmable options:
- Up to 100 switching points per week
- 16 switching points per day max
- Brass; nickel-plated valve housing
- 115/230V
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Connection Size / Type | 1" NPT, 2" NPT |
|---|
