BEKO Technologies Metpoint Compact BDL Multi-Function Monitoring System
Configurable options including data logging, MODBUS output, remote monitoring and more
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

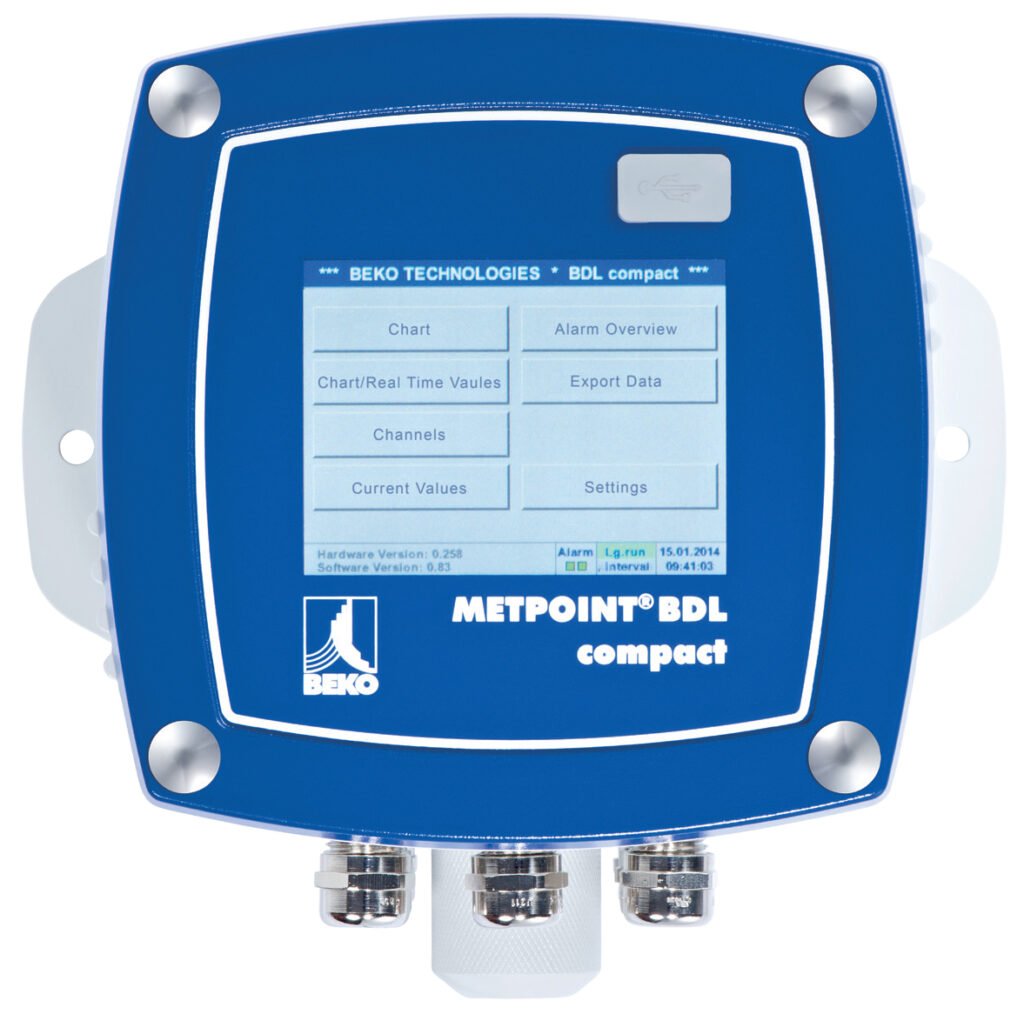

The BEKO Technologies Metpoint Compact BDL Multi-Function Monitor System includes a powder-coated aluminum housing with a polyester front faceplate. The base model includes a maximum of 4 sensor inputs per unit. Data logging includes up to 1,000,000 values per recording interval (minimum of 1 second, maximum 59 minutes and 59 seconds). The interface type is accessible by USB stick, USB cable, Ethernet / RS 485 Modbus RTU / TCP, SDI, or an integrated web server. Outputs include a connection of 4-20 mA signals of dew point and consumption sensors (with a maximum burden of <500ohms), and 2 alarm relays on 230 VAC. The display type is full color, 3.5″ TFT touch panel transmissive, with graphics, charts and statistics.
Overview and Features
Features
- Configuration:
- 2 or 4 analog sensors
- 2 or 4 digital sensors
- 2 and 2 analog/digital sensors option
- 33 to 122°F operating temperature
- -4 to 158°F storage temperature
- 4gb memory card
- 24 VDC power supply, max 25 mA per sensor
- 7 x M12 x 1.5 nickel-plated brass connections for sensor, power supply and alarm relays
- IP 44 standard housing protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | 2 analog sensors, 4 analog sensors, 2 digital sensors, 4 digital sensors, 2 analog sensors and 2 digital sensors |
|---|
