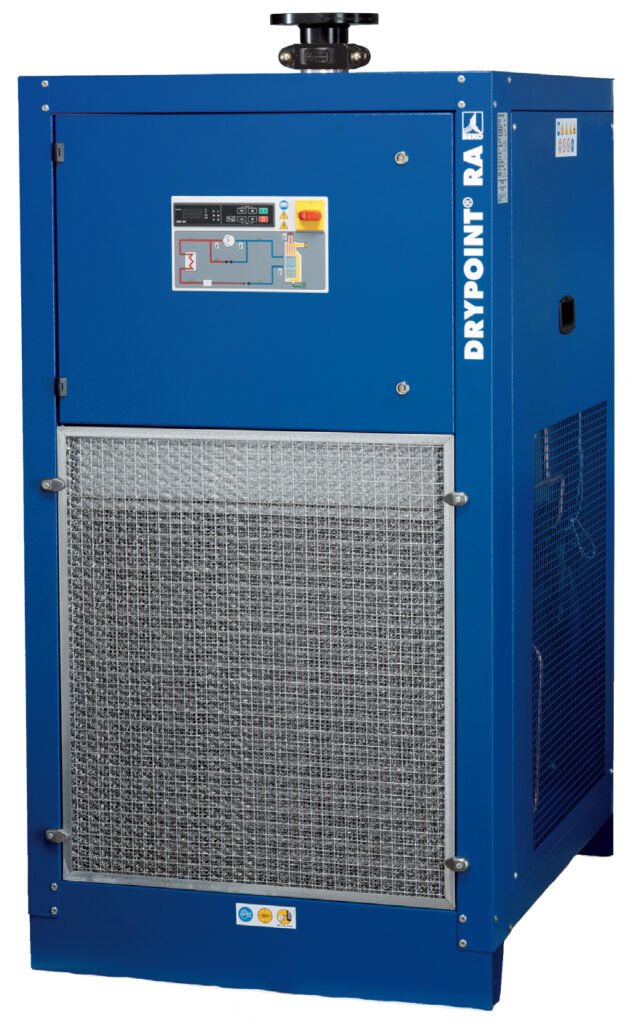

BEKO Technologies DRYPOINT RAx Series Refrigerated Air Dryer
Ranging from 2000 to 10000 CFM, air cooled, equipped with all premium features as standard, including BEKOMAT drain
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO Technologies DRYPOINT RAx Series Refrigerated Air Dryer is UL/CSA certified and Ilot ready, applies an all aluminum profile for minimal pressure drop, and self-cleans using gravity. Each model includes a BEKOMAT condensate drain as standard.
Saturated, warm compressed air is pre-cooled in the air-to-air heat exchanger. The compressed air is then cooled in the air-to-refrigerant heat exchanger to the required pressure dew point. Re-entrainment of separated water droplets is prevented by the large condensate collection chamber and reduced velocity. The timer drain then discharges the accumulated condensate from the dryer, and the cold and dried compressed air leaves the dryer via an air-to-air heat exchanger, reducing the relative humidity and recovering the cooling capacity by up to 60%.
Overview and Features
Features
- 2000 to 10000 SCFM capacity
- Connection: 4 to 10″ ANSI Flanged
- Voltage: 460/3/60
- Pressure rating: 200 PSIG
- 1 micron required pre-filtration
- .01 micron recommended post-filtration
- 160°F maximum inlet air temperature
- 34 to 120°F ambient temperature range
- Class 4-5 outlet PDP in accordance with ISO 8573-1:2010
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 2,000 SCFM, 2,500 SCFM, 3,000 SCFM, 4,000 SCFM, 5,000 SCFM, 6,000 SCFM, 7,500 SCFM, 8,000 SCFM, 10,000 SCFM |
|---|---|
| Connection | 4" Flanged, 6" Flanged, 8" Flanged, 10" Flanged |
| Voltage | 460/3/60 |
| Power Consumption | 8.6 kW, 9.8 kW, 12.2 kW, 15.7 kW, 23.5 kW, 25.5 kW, 27.1 kW, 35 kW, 40.7 kW |
