BEKO Technologies DRYPOINT MDe Economy Series Membrane Air Dryer
Standard membrane air dryer with tubular or filter style housing
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO Technologies DRYPOINT MDe Economy Series Membrane Air Dryer is a high-performance air treatment solution designed to efficiently remove moisture and impurities from compressed air systems. Engineered with precision and reliability in mind, these membrane dryers offer a cost-effective yet highly capable solution for various industrial applications.
Overview and Features
Features
- 34°F min ambient air temperature
- 130°F max standard operating temperature
- 140 PSIG max operating pressure
- Required pre-filtration:
- 5 μm (MDe 2-8)
- .01 μm (MDe 10-130)
Note: A pre-filter is required to operate this unit. Please make sure you have the appropriate filtration for your system or purchase the recommended filters found in the accessories tab.
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications

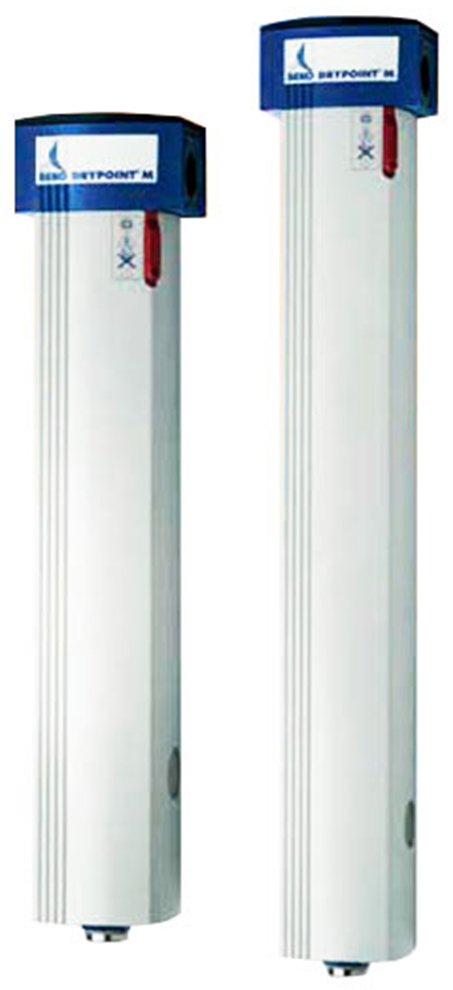

| Type | Horizontal, tubular style, Vertical, filter style |
|---|---|
| Capacity | 2.09 SCFM, 4.18 SCFM, 6.27 SCFM, 8.36 SCFM, 11.34 SCFM, 12.55 SCFM, 16.73 SCFM, 25.09 SCFM, 33.46 SCFM, 43.29 SCFM, 55.89 SCFM, 67.21 SCFM, 100.77 SCFM, 134.35 SCFM |
| Connection Size | 1/4" NPT, 3/8" NPT, 3/4" NPT, 1.5" NPT |
