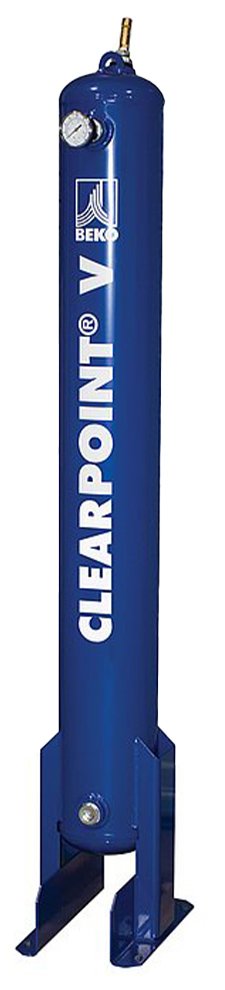

BEKO Technologies CLEARPOINT V Activated Carbon Tower
In-line oil vapor removal tower with activated carbon fill, flow rates up to 2800 SCFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO Technologies CLEARPOINT V Activated Carbon Tower is an efficient solution designed for the removal of oil vapor, odors, and other volatile organic compounds (VOCs) from compressed air and gases. This tower utilizes the power of activated carbon adsorption technology to provide exceptional purification, ensuring that the processed air meets the highest quality standards for various industrial applications.
The CLEARPOINT V can easily integrate into existing compressed air systems or gas pipelines. Its construction features premium quality materials that ensure longevity and durability, even when operating under demanding conditions.
The carbon bed offers an extensive surface area with microscopic pores that attract and capture oil vapors and odorous substances. As the contaminated air passes through the tower, the activated carbon adsorbs these pollutants, effectively cleansing the air and leaving it virtually free from unwanted impurities.
The CLEARPOINT V is an ideal choice for industries such as food and beverage, pharmaceuticals, electronics manufacturing, and many others where clean and odor-free compressed air is essential for maintaining product integrity and equipment performance.
Overview and Features
Features
- 80 to 2800 SCFM flow rates
- Residual oil vapor content down to .003 mg/m3
- 30% max inlet moisture (dryer required upstream)
- 150 PSIG max operating pressure
- 120°F max operating temperature
- .01 µm pre-filtration is required (sold separately)
Note: A pre-filter is required to operate this unit. Please make sure you have the appropriate filtration for your system or purchase the recommended filters found in the accessories tab.
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 80 SCFM, 100 SCFM, 120 SCFM, 160 SCFM, 200 SCFM, 250 SCFM, 300 SCFM, 400 SCFM, 500 SCFM, 650 SCFM, 800 SCFM, 1000 SCFM, 1200 SCFM, 1500 SCFM, 1900 SCFM, 2300 SCFM, 2800 SCFM |
|---|---|
| Connection Size | 1" NPT, 1.5" NPT, 2" NPT, 2.5" NPT, 2.5" flange, 3" flange, 4" flange |
