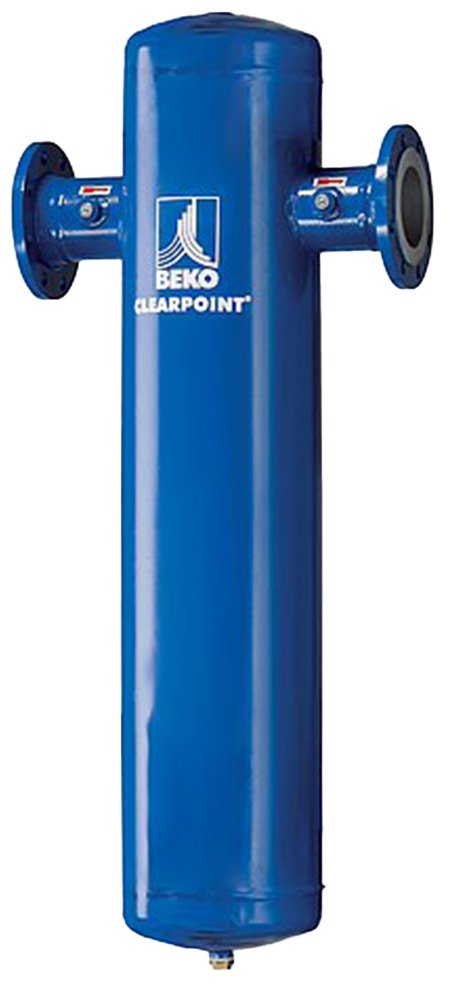

BEKO Technologies CLEARPOINT Flanged Water Separator
Designed for removal of large quantities of condensate, used downstream of aftercoolers
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO Technologies CLEARPOINT Flanged Water Separator is utilized alongside aftercoolers and refrigeration dryers. It’s designed to eliminate liquid accumulation occurring within compressed air pipelines due to condensation. The process of compression inherently generates condensation in all compressed air systems. Inadequate water or condensate control can lead to process pollution, component breakdown, and significant differential pressure. Such outcomes can incur substantial expenses in contrast to the cost of proper mitigation.
Overview and Features
Features
- 4 to 12″ flange connections
- 1900 to 21000 SCFM capacity
- 232 PSIG pressure rating
- 140°F maximum operating temperature
- Powder coated carbon steel housing
- BEKOMAT drain as standard
- Designed according to ASME Sec. VIII, Div. 1
- UM stamp
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 1900 SCFM, 2800 SCFM, 3800 SCFM, 6500 SCFM, 7500 SCFM, 9300 SCFM, 13000 SCFM, 21000 SCFM |
|---|---|
| Connection Size | 4" flange, 6" flange, 8" flange, 10" flange, 12" flange |
