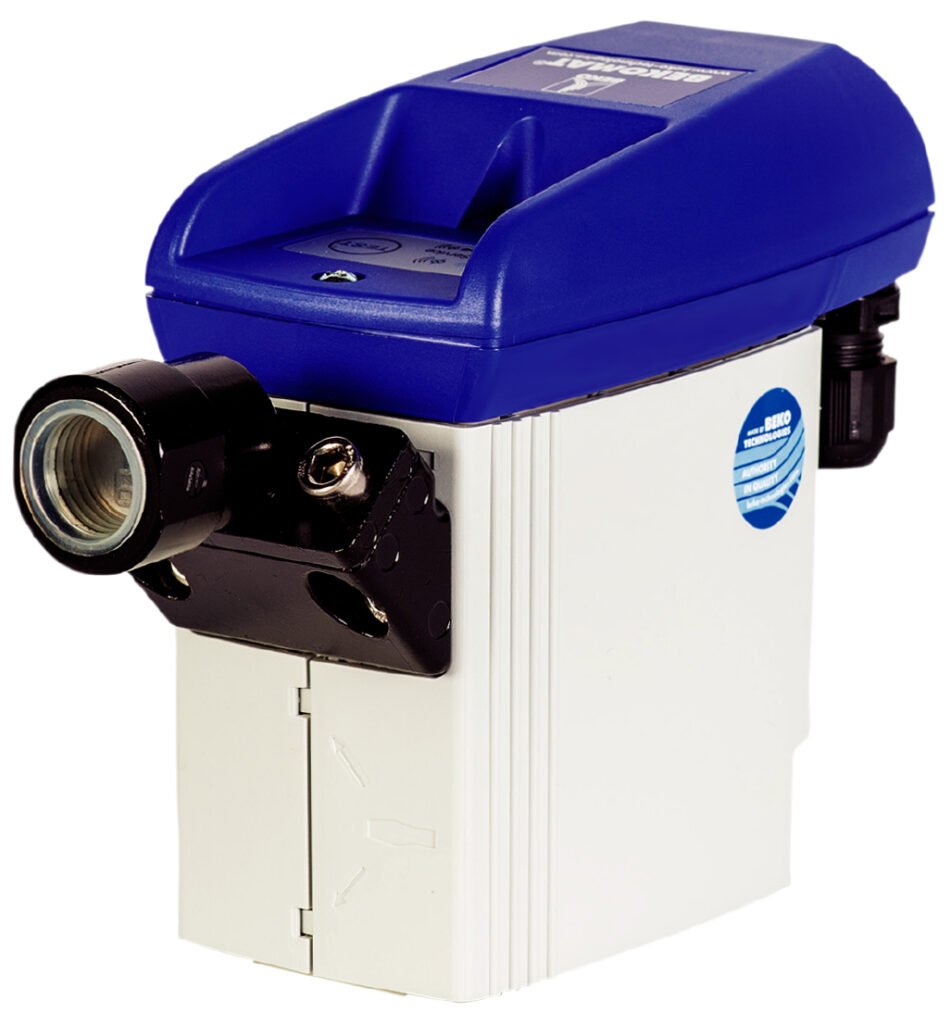

BEKO Technologies BEKOMAT Standard Zero Loss Condensate Drain
For standard pressure applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO Technologies BEKOMAT Standard Zero Loss Condensate Drain applies an integrated capacity sensor, smart electronics for volume-controlled discharge, and a proven pilot controlled solenoid valve to release condensate without the loss of compressed air, reducing energy costs and CO2 emissions. An integrated sieve eliminates the need for a Y-strainer, and the possibility of damage due to dirt or other particulates. A visual status indication is given on the drain and can be wired for remote access. The unit continuously monitors both level and function for autonomous operation. The unit is UL/CSA approved, and comes with a standard Viton® diaphragm. The aluminum housing includes a hard coating option for 500 SCFM and higher compressor capacities.
Overview and Features
Features
- 232 PSIG pressure rating
- Compressor capacity options:
- Low – 100 to 500 SCFM
- High – 1,300 to 50,000 SCFM
- Dryer capacity options:
- Low – 200 to 1,000 SCFM
- High – 2,600 to 100,000 SCFM
- 1/2 to 1″ NPT connections
- Voltage:
- Low capacity – 95-240 VAC 50/60 Hz / 100-125 VDC
- High capacity – 115 VAC
- 33 to 140°F operating temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Compressor Capacity | 100 SCFM, 225 SCFM, 500 SCFM, 1,300 SCFM, 5,400 SCFM, 50,000 SCFM |
|---|---|
| Dryer Capacity | 200 SCFM, 450 SCFM, 1,000 SCFM, 2,600 SCFM, 10,800 SCFM, 100,000 SCFM |
| Housing | Standard aluminum without dry contact, Standard aluminum, Aluminum + hard coating |
| Connection | 1 x 1/2" NPT, 3 x 1/2" NPT, 2 x 1/2" NPT, 3 x 3/4" NPT, 2 x 3/4" NPT and 1 x 1" NPT |
