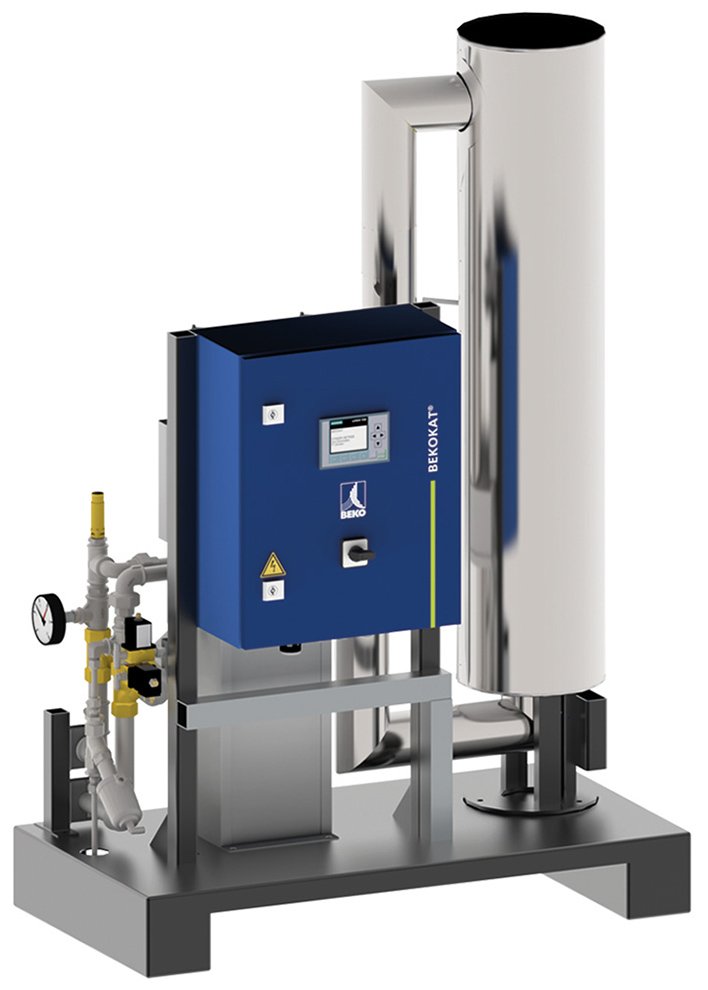

BEKO Technologies BEKOKAT Catalytic Conversion System

Product overview

Built around your operating requirements.

Description

The BEKO Technologies BEKOKAT Catalytic Conversion System converts hydrocarbons into carbon dioxide and water by total oxidation on the catalyst. As a result, the system consistently produces oil-free compressed air with a residual oil content of only 0.003 mg/m³, which exceeds the residual oil content of 0.01 mg/m³ specified in Class 1. This level of purity is required in demanding production processes such as the food, pharmaceutical, automotive, and electronics industries.

The BEKOKAT is typically installed as a stand-alone solution behind the compressors or on the consumption point installed.

Overview and Features

Features

≤.003 mg/m3 attainable residual oil at outlet
41°F / 131°F min/max inlet air temperature
Max operating pressures:
- 35 to 425 SCFM: 232 PSIG
- 10 SCFM and 705 SCFM: 160 PSIG
Optional 1 μm pre-filter and bypass valve available
ISO 8573-1, Class 1 certified

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Capacity	10 SCFM, 35 SCFM, 70 SCFM, 105 SCFM, 210 SCFM, 425 SCFM, 705 SCFM
Connection Size	1/2" NPT, 1" NPT, 1.25" NPT, 1.5" NPT, 2" NPT, 2.5" NPT
Inlet Water Separator (Required)	Inlet water separator for 10 SCFM, Inlet water separator for 35 SCFM, Inlet water separator for 70 SCFM, Inlet water separator for 105 SCFM, Inlet water separator for 210 SCFM, Inlet water separator for 425 SCFM, Inlet water separator for 705 SCFM
Optional Pre-Filter	None, 1 μm pre-filter for 10 SCFM, 1 μm pre-filter for 35 SCFM, 1 μm pre-filter for 70 SCFM, 1 μm pre-filter for 105 SCFM, 1 μm pre-filter for 210 SCFM, 1 μm pre-filter for 425 SCFM, 1 μm pre-filter for 705 SCFM
Optional Equipment	None, Bypass valve, mounted and tested (10 SCFM), Bypass valve, mounted and tested (35, 70, and 105 SCFM), Bypass valve, mounted and tested (210 SCFM), Bypass valve, mounted and tested (425 SCFM), Bypass valve, mounted and tested (705 SCFM)

Capacity

10 SCFM, 35 SCFM, 70 SCFM, 105 SCFM, 210 SCFM, 425 SCFM, 705 SCFM

Connection Size

1/2" NPT, 1" NPT, 1.25" NPT, 1.5" NPT, 2" NPT, 2.5" NPT

Inlet Water Separator (Required)

Inlet water separator for 10 SCFM, Inlet water separator for 35 SCFM, Inlet water separator for 70 SCFM, Inlet water separator for 105 SCFM, Inlet water separator for 210 SCFM, Inlet water separator for 425 SCFM, Inlet water separator for 705 SCFM

Optional Pre-Filter

None, 1 μm pre-filter for 10 SCFM, 1 μm pre-filter for 35 SCFM, 1 μm pre-filter for 70 SCFM, 1 μm pre-filter for 105 SCFM, 1 μm pre-filter for 210 SCFM, 1 μm pre-filter for 425 SCFM, 1 μm pre-filter for 705 SCFM

Optional Equipment

None, Bypass valve, mounted and tested (10 SCFM), Bypass valve, mounted and tested (35, 70, and 105 SCFM), Bypass valve, mounted and tested (210 SCFM), Bypass valve, mounted and tested (425 SCFM), Bypass valve, mounted and tested (705 SCFM)
