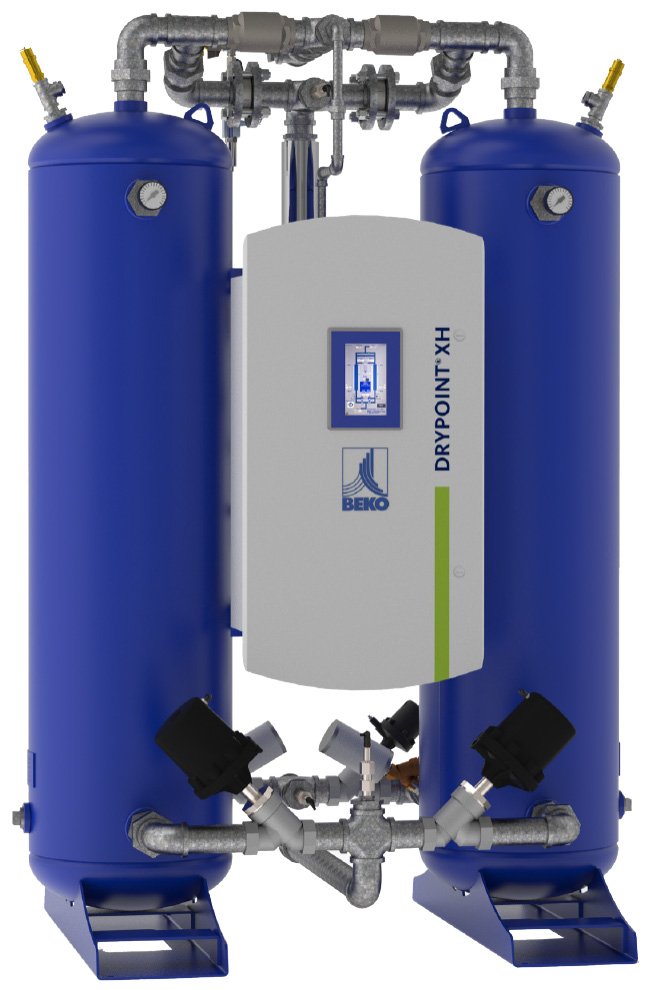

BEKO DRYPOINT XH Series Heated Purge Desiccant Air Dryer
100 to 3200 CFM dryer, available with intelligent algorithm to optimize the amount of purge air used for regeneration
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO DRYPOINT XH Series Heated Purge Desiccant Air Dryer utilizes an external heater to regenerate the desiccant in one tower. The other tower dries the compressed air to a very low dew point. The XHi models use a patent-pending, intelligent algorithm and systems to control the performance and maximize cost savings.
Overview and Features
Features
- 100 to 3200 CFM
- -40°F standard dew point
- 150 PSIG max operating pressure
- Voltages
- 100 to 250 CFM: 120/1/60
- 300 to 3200 CFM: 460/3/60
- cUL certified controls with NEMA 4 indoor rating
- Required pre-filtration grade SX: .01µm
- Required post-filtration grade FX: 1µm
Note: A pre-filter and a post-filter are required to operate this unit. Please make sure you have the appropriate filtration for your system or purchase the recommended filters found in the accessories tab or view this list to determine which filters are required for your unit.
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Dryer without filters, Dryer with Mounted Filters, Dryer with Mounted Filters and 3-Valve Bypass |
|---|---|
| Controls | BEKOTOUCH 2 controls, BEKOTOUCH 2 controls, variable purge valve, and intelligent demand based energy control |
| Flow Rate | 100 SCFM, 150 SCFM, 200 SCFM, 250 SCFM, 300 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 800 SCFM, 1000 SCFM, 1200 SCFM, 1500 SCFM, 1800 SCFM, 2100 SCFM, 2500 SCFM, 3200 SCFM |
| Additional Options | Filter alarm with gauge, Dew point demand, Drain upgrade to BEKOMAT |
