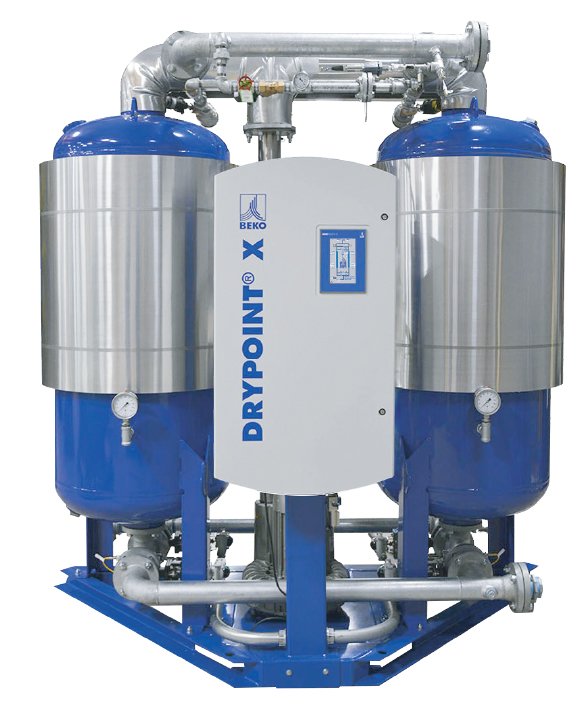

BEKO DRYPOINT XFe Economy Heated Blower Series Air Dryer
Features external heated blower, high performance valves and BEKOTOUCH 2 interface
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO DRYPOINT XFe Economy Heated Blower Series use a desiccant material, which adsorbs the water vapor in the air stream. Heated regenerative type desiccant dryers utilize an external heater to regenerate the desiccant in one tower while the other tower dries the compressed air to a very low dew point.
The XFe is engineered to be quickly and easily customized to suit any application with reduced lead-times, and automatically calculates the most energy-efficient mode of operation at any given time. Auto-adjusting purge rates and user presets for fully customizable operation.
Overview and Features
Features
- -40 °F standard outlet pressure dew point
- 460 VAC / 3 Ph / 60 Hz electrical power supply
- 40 to 120 °F inlet air temperature
- 60 to 150 psig operating pressure
- cUL certified controls with NEMA 4 indoor rating
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Connection | 2½" Flange, 3" Flange, 4" Flange, 6" Flange |
|---|---|
| Flow Rate | 800 scfm, 1000 scfm, 1200 scfm, 1500 scfm, 1800 scfm, 2300 scfm, 2800 scfm, 3300 scfm, 4000 scfm, 5000 scfm, 6000 scfm |
| Required Pre-Filters | M025 Pre-Filter | .01 μm, M030 Pre-Filter | .01 μm, L100 Pre-Filter | .01 μm, L102 Pre-Filter | .01 μm, L150 Pre-Filter | .01 μm, L156 Pre-Filter | .01 μm |
| Required Post-Filters | M025 Post-Filter | 1 μm, M030 Post-Filter | 1 μm, L100 Post-Filter | 1 μm, L102 Post-Filter | 1 μm, L150 Post-Filter | 1 μm, L156 Post-Filter | 1 μm |
| Filtration Package | None, Standalone Skid-Mounted Filtration Package |
