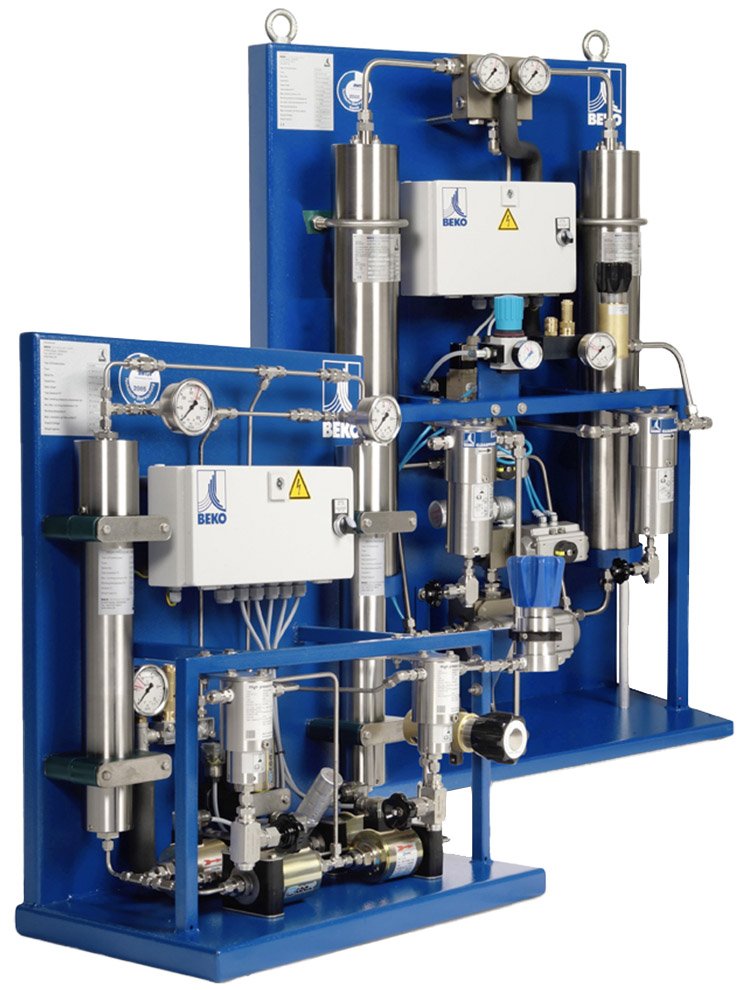

BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer
High pressure heatless dryer with full stainless steel components and PLC controller
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer comes with a standard compressor synchronization control system. The intelligent control system automatically saves the current status of the process program and resumes operation from the point of interruption in case of a restart. This helps prevent an overload of adsorption desiccant. This solution offers operational safety and energy-saving coupling with compressor operation. The adsorption vessels are made of profiled stainless steel and feature a spacious opening that comes with a screw lid for easy maintenance. This also enables thorough inspections of the inside of the vessel.
Overview and Features
Features
- 1450 to 5000 PSIG pressure ratings
- 35 to 480 SCFM flow rates
- -40°F standard pressure dew point
- -100°F optional outlet pressure dew point available
- Vessels and all components are stainless steel
- Standard electrical power supply: 85 – 265 VAC; 24 Vdc; 50-60 Hz
- Included pre-filtration grade SX: .01 μm
- FX 1 μm optional pre-filtration grade available
- Included post-filtration grade FX: 1 μm
- Min. / max. air inlet temperature: 41°F / 131°F
- Min. / max. ambient temperature: 41°F / 122°F
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Operating Pressure | 1450 PSIG, 3600 PSIG, 5000 PSIG |
|---|---|
| Capacity | 35 SCFM, 50 SCFM, 95 SCFM, 145 SCFM, 230 SCFM, 65 SCFM, 85 SCFM, 125 SCFM, 260 SCFM, 385 SCFM, 110 SCFM, 155 SCFM, 315 SCFM, 480 SCFM |
| Connection Size | 1/2" NPT |
