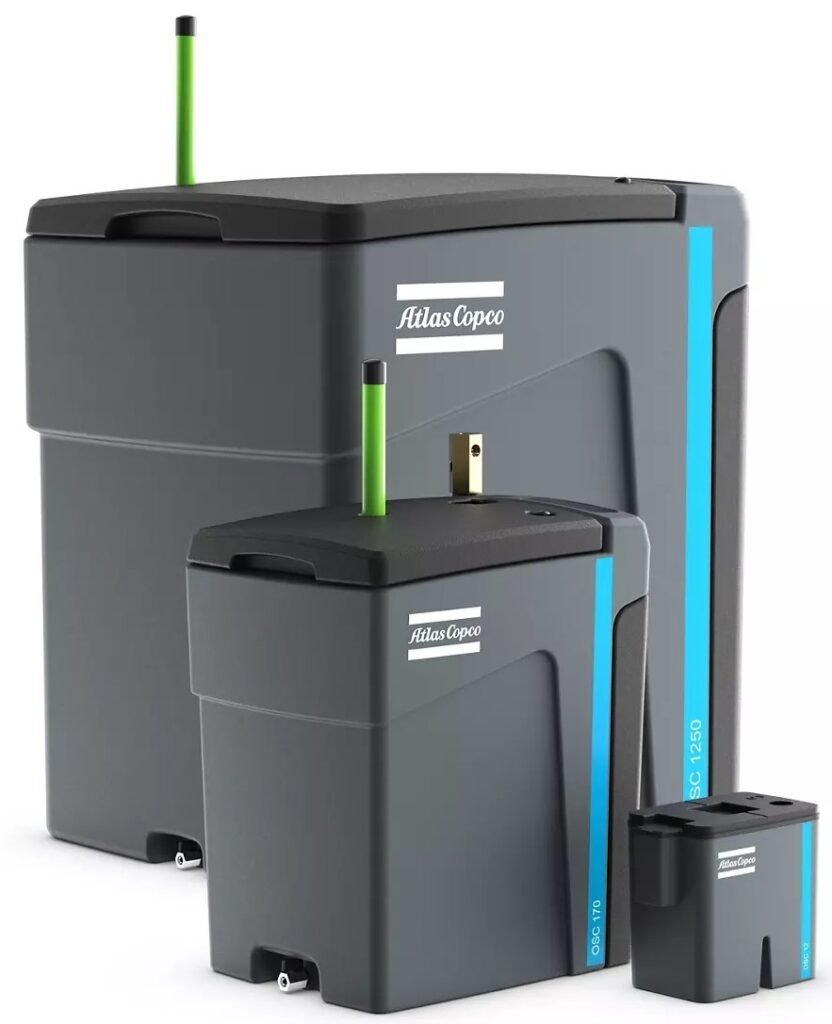

Atlas Copco OSC Oil and Water Separator
Provides compliance with condensate treatment law
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Atlas Copco OSC Oil and Water Separator uses triple filtration with polypropylene and activated carbon to remove a wider range of oil types and achieve water purity as low as 5ppm. Easily removable filter bags and cartridges simplify and shorten maintenance. A service indicator signals the polypropylene filter is saturated, and an overflow indicator monitors correct water passage.
The OSC 12-15 are small single-use units, while larger units are serviceable. The OSC 12-625 are two-stage units, while the OSC 1250-2500 are three-stage units. The OSC 2500 uses a flow divider to evenly split the flow between two units.
Overview and Features
Features
- Capacity:
- Without dryer & filters: 32 to 6,621 CFM
- With dryer & filters: 25 to 5,296 CFM
- Test outlet verifies filtration performance
- 4,000hr service interval
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity (without dryers & filters) | 32 CFM, 66 CFM, 132 CFM, 225 CFM, 450 CFM, 795 CFM, 1655 CFM, 3311 CFM, 6621 CFM |
|---|
