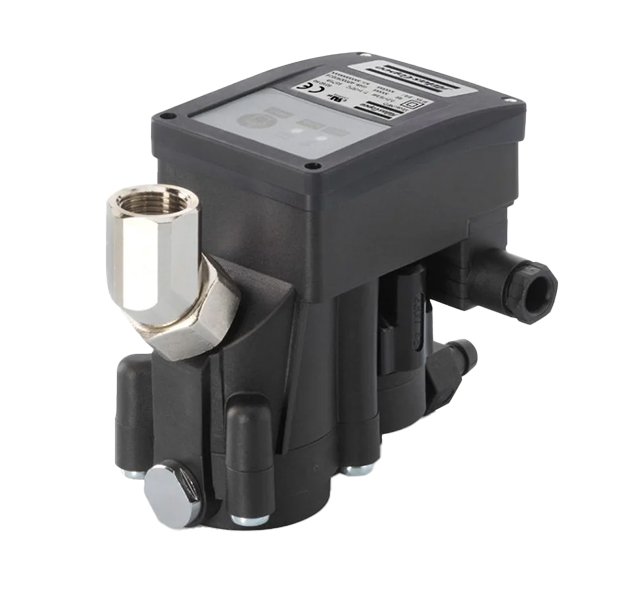

Atlas Copco IWD Electronic Drain
Electronic drain series with a maximum pressure of 232 PSI and can be used in oil-lubricated and oil-free installations
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Atlas Copco IWD series is a line of electronic drains designed to collect and remove liquid moisture from an air system effectively, reliably, and efficiently. The IWD is a zero-loss drain, only releasing its moisture content when it reaches a pre-set level. The drain leaves a minimal amount of moisture, ensuring no energy can escape as the receiver empties. The housing allows the IWD to be used in oil-free and oil-lubricated applications.
Overview and Features
Features
- Maximum compressor capacity: 1059 CFM
- Maximum dryer capacity: 2119 CFM
- Maximum pressure: 232
- Ideal operating conditions:
- Ambient temperature: 68°F (20°C)
- Relative humidity: 30%
- Zero-loss drain
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Maximum Capacity | Max compressor capacity: 106 CFM; Max dryer capacity: 212 CFM, Max compressor capacity: 222 CFM; Max dryer capacity: 445 CFM, Max compressor capacity: 265CFM; Max dryer capacity: 530 CFM, Max compressor capacity: 530 CFM; Max dryer capacity: 1059 CFM, Max compressor capacity: 1059 CFM; Max dryer capacity: 2119 CFM |
|---|
