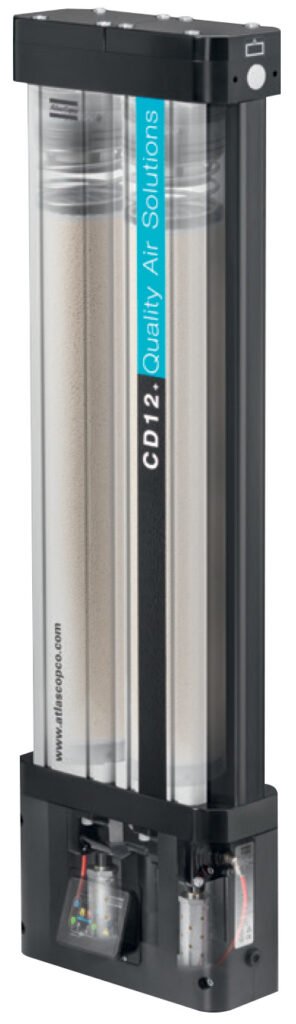

Atlas Copco CD+ Heatless Regenerative Desiccant Air Dryer
Compact design with models available between 3.2 to 10.6 CFM, dew point starting at -40° F.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Atlas Copco CD+ Heatless Regenerative Desiccant Air Dryer is filled with molecular sieves to allow for various pressure dewpoints (-40 °C/-40 °F and -70 °C/-100 °F). Overfilled cartridges protect against desiccant aging and overflow peaks. Multi-port inlet and outlet provide for easier connection to the system. The dryer can be installed vertically or horizontally. Integrated silencers minimize noise.
Non-return valves and purge cavities are built into the polycarbonate cartridges. Each desiccant cartridge includes an integrated after-filter to save space, simplify installation, and decrease the risk of leaks. A purge saver function is included as standard. The controller shows the dryer/cycle status and automatic fault diagnosis. The dryer can remain connected to the compressed air network during service, and the inlet and outlet can be reversed. The dryer can be remotely operated.
Overview and Features
Features
- 232psig maximum working pressure
- 122°F maximum working temperature
- IP65-protected electrical panel
- Full electronic controller with purge saver function
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Connection | 1/4" NPT, 1/2" NPT |
|---|---|
| Capacity | 3.2, 6.4, 10.6 |
