Applied System Technologies 70 Durometer Buna-N Nitrile O-Ring
Replacement 70 durometer o-ring available in 3 different diameters
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

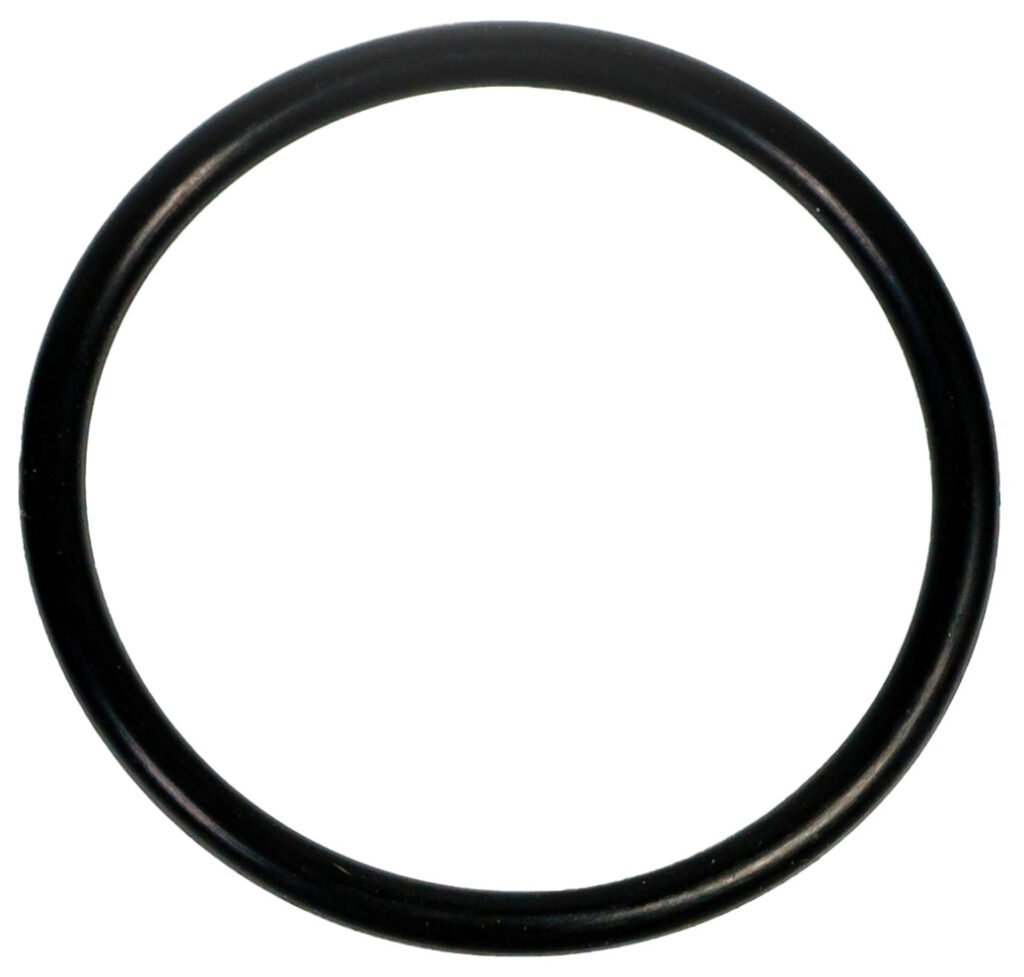

The Applied System Technologies 70 Durometer Buna-N Nitrile O-Ring is made from a copolymer of Butadiene and Acrylonitrile. This material is highly resistant to petroleum-based oils and hydrocarbon fuels and can withstand temperatures ranging from -40°F to 250°F. These o-rings also have exceptional tensile strength and abrasion resistance properties. They perform well with most dilute acids, silicone oils, and lubricants as well as water applications.
| Item Number | Size | Dimensions | Actual | Metric |
| 135B70 | 50mm | 1-15/16″ID x 2-1/8″OD x 3/32″CS | 1.925″ ID x 0.103″ CS | 48.9mm ID x 2.62mm CS |
| 136B70 | 50mm | 2″ ID x 2-3/16″ OD x 3/32″ CS | 1.987″ ID x 0.103″ CS | 50.47mm ID x 2.62mm CS |
| 144B70 | 63mm | 2-1/2″ ID x 2-11/16″ OD x 3/32″ CS | 2.487″ ID x 0.103″ CS | 63.17mm ID x 2.62mm CS |
It is not recommended to use these o-rings with ketones, aromatic hydrocarbons, and phosphate ester hydraulic fluids.
Applications:
- General purpose sealing
- Petroleum oil and fluid
- Gasoline
- Hydraulic fluid
- L.P. gas
- Cold Water
- Silicone grease and oil
- Di-ester base lubricant (MIL-L-7808)
- Ethylene glycol base fluid (Hydrolubes)
Overview and Features
Features
- Black sulfur-cured Nitrile (Buna-N) compound
- 70 durometer
- -40°F to 250°F operating temperature range
- ASTM D2000-99 Grade M2BG714 B14 EA14 EF11 EF21 EO14 EO34 Z1=TR10= -31.9C
- Designed to meet or exceed the properties of the Buna Nitrile compounds:
- N674-70, N100-70, 7507, B46-70, 4200-70, H14327, 4700-70, and 366Y
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Size | 1-15/16" ID x 2-1/8" OD x 3/32" CS, 2" ID x 2-3/16" OD x 3/32" CS, 2-1/2" ID x 2-11/16" OD x 3/32" CS |
|---|
