ANA Energy EBOSS 70 kVA Hybrid System
70 kVA output, 25 kWh Lithium Titanate Oxide (LTO) battery system, Airman SDG45 generator
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

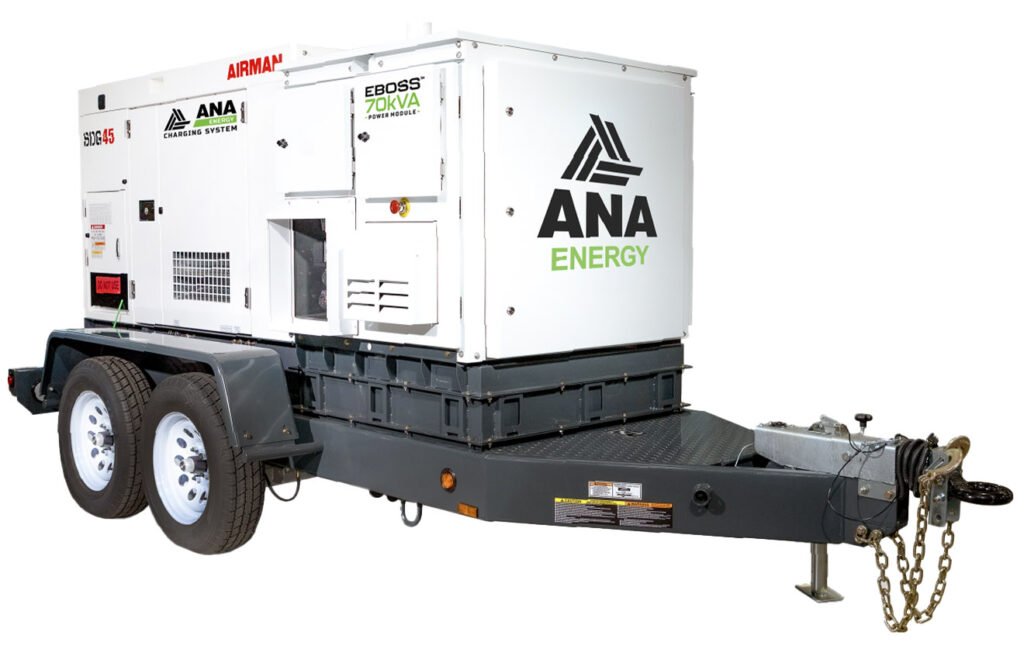

The ANA Energy EBOSS 70 kVA Hybrid System is an energy and fuel-efficient solution that reduces fuel consumption, maintenance costs, and greenhouse gas emissions combining an advanced Lithium Titanate Oxide (LTO) battery technology with the dependable power of a Airman SDG45 generator. Featuring a 25-kWh battery with a 20-year life cycle at a 3-kW average load, the EBOSS 70 provides maximum sustainability. Designed for versatility, it offers simultaneous three-phase and single-phase output voltages, an all-in-one trailer, telematics, and a 10” LCD display.
Overview and Features
Features
- Airman SDG45 generator: (Max continuous power output)
- 42 kVA / 33 kW 3-phase output
- 28 kVA / 22 kW 1-phase output
- 120V/208V/277V/480V simultaneous 3-phase voltage
- 120V / 240V simultaneous 1-phase voltage
- 25 kWh Lithium Titanate Oxide (LTO) battery
- 56 kW inverter output max
- -22°F to 130°F operating temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
