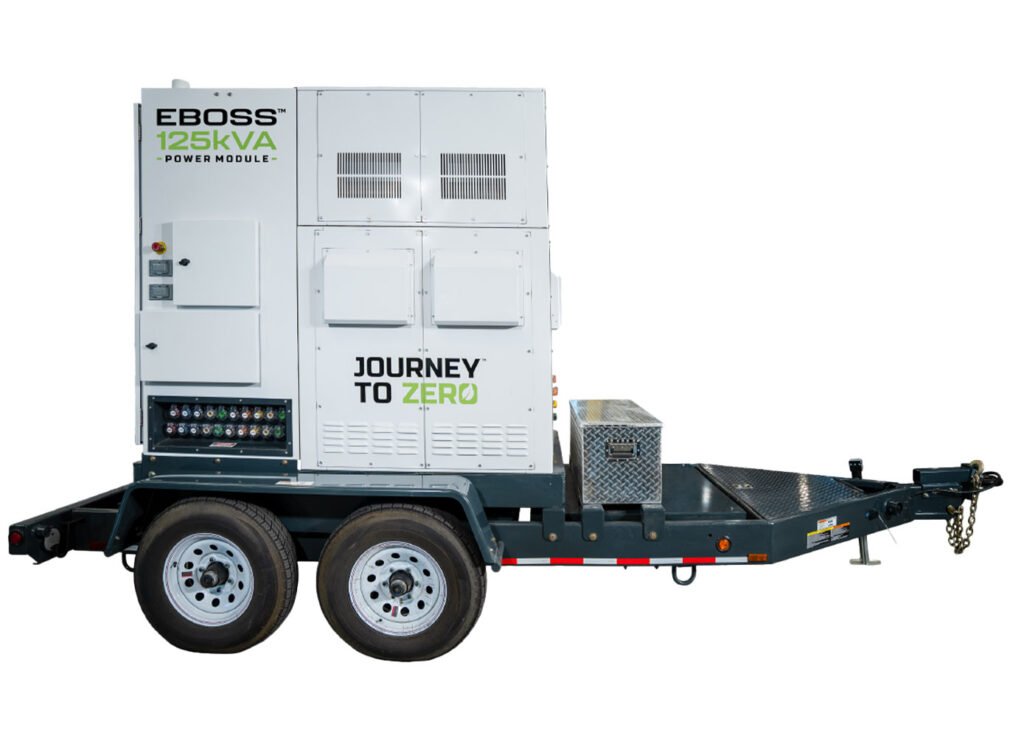

ANA Energy EBOSS 125 kVA Power Module
125 kVA output, 50 kWh Lithium Titanate Oxide (LTO) battery system
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ANA Energy EBOSS 125 kVA Power Module is an energy and fuel-efficient solution that reduces fuel consumption, maintenance costs, and greenhouse gas emissions utilizing an advanced Lithium Titanate Oxide (LTO) battery technology. Featuring a 50-kWh battery with a 20-year life cycle at a 3-kW average load, the EBOSS 125 power module provides maximum sustainability. Designed for versatility, it offers simultaneous three-phase and single-phase output voltages, an all-in-one trailer, telematics, and a 10” Touchscreen display.
Overview and Features
Features
- Max continuous power output:
- 62 kVA / 50 kW 3-phase output
- 2.4 kW x 2 1-phase output
- Voltge:
- 120V/208V/277V/480V simultaneous 3-phase voltage
- 120V simultaneous 1-phase voltage
- 50 kWh Lithium Titanate Oxide (LTO) battery
- 100 kW inverter output max
- -22°F to 130°F operating temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
