Altec AIR
Altec AIR Pressure Manifold
2, 4, and 8-port manifolds with pressure gauges, optional check valves
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

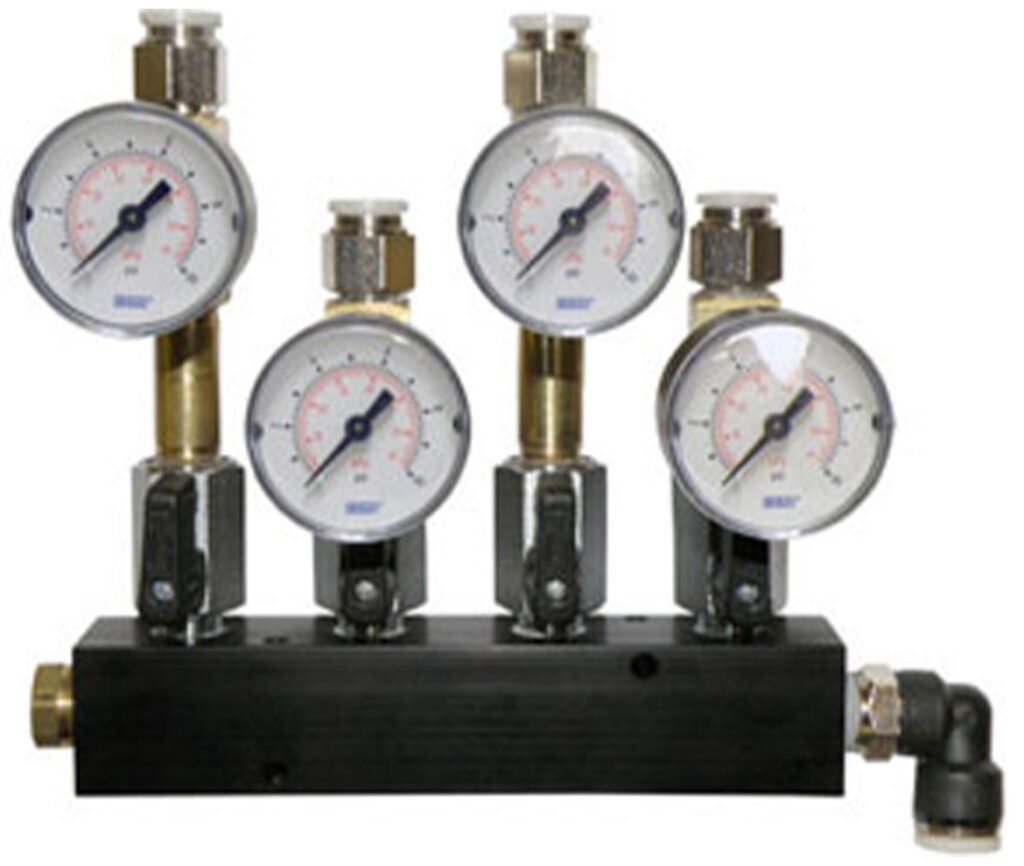

The Altec AIR Pressure Manifold is designed to allow for a single source of dehydrated air to be distributed to multiple points. Versatile installation options allow multiple manifolds to be joined together for additional distribution points.
Overview and Features
Features
- Pressure Gauges: 0 to 15 PSI / 0 to 103 kPa
- 3/8″ Press-Lock outlet ports including 1/4″ Press-Lock reducers
- Individual shutoff valves
- 3/8″ press-Lock inlet port
- 3/8″ FPT port plus fittings for expansion to additional manifolds
- Optional check valves to prevent back feed
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Ports | 2 ports, 4 ports, 8 ports |
|---|---|
| Check Valves | None, Add Check Valves |
