Altec AIR

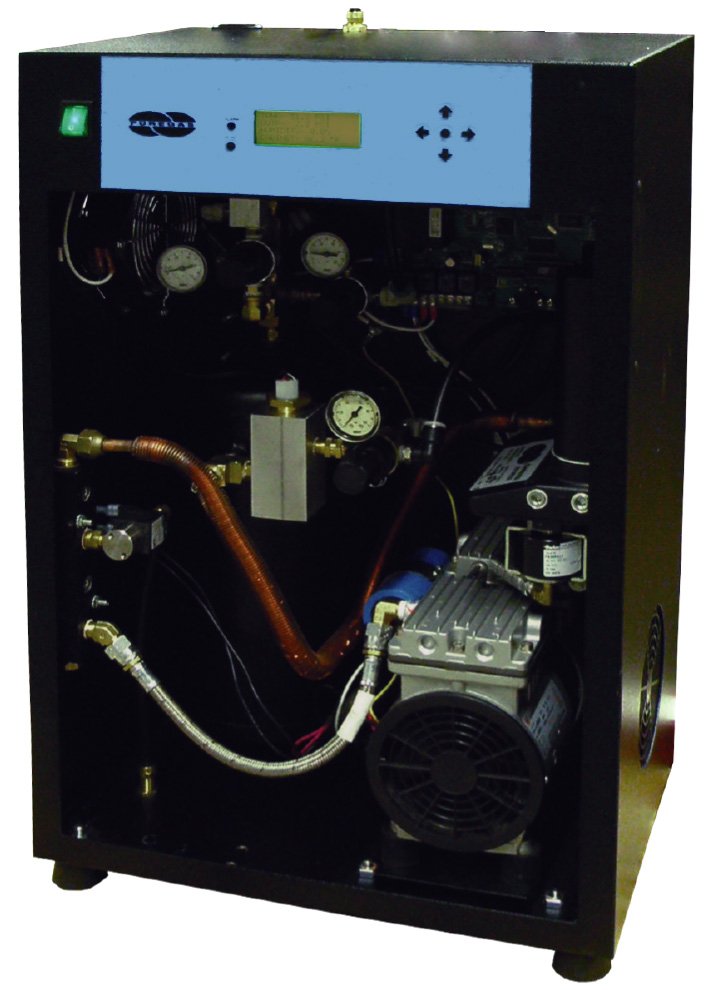

Altec AIR P1500W Series Dehydrator
Heatless desiccant dehydrator capable of air delivery up to 1500 SCFD
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Altec AIR P1500W Series Dehydrator is a high-capacity air drying solution that provides an air delivery rate of 1200 SCFD under normal operating conditions with the ability to increase to 1500 SCFD in emergency situations.
The P1500W supports a variety of outlet pressure ranges, including 2 to 15 PSIG, 0.30 to 7.50 PSIG, and 2 to 60 PSIG, making it versatile for different operational needs. It also has the humidity control capability of maintaining less than 2% relative humidity (RH).
The P1500W features a digital display for easy monitoring of operational parameters. It offers remote real-time data access and alarm reset capabilities, which enhance system management and responsiveness. Compatibility with SNMP communication allows for seamless integration into network management systems, facilitating efficient monitoring and control.
The ultra-quiet compressor ensures minimal noise disruption, making it suitable for various installation environments. Power options are flexible, with the unit capable of operating on 110-125 VAC or 208-253 VAC, both at 50/60 Hz, accommodating different power infrastructures.
Overview and Features
Features
- Air delivery:
- Normal: 1200 SCFD continuous
- Maximum: 1500 SCFD emergency
- Outlet pressure ranges:
- 2 to 15 PSIG
- 0.30 to 7.50 PSIG
- 2 to 60 PSIG
- 3/8” press-to-lock tube fitting outlet
- Less than 2% RH
- Digital display
- Remote real-time data and alarm reset capabilities
- SNMP communication compatible
- Ultra quiet, two-cylinder, 3/4 HP, oilless type compressor
- 110-125 VAC, 50/60 Hz or 208-253 VAC, 50/60 Hz options
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Outlet Pressure Range | 2 to 15 PSIG, 0.30 to 7.50 PSIG, 2 to 60 PSIG |
|---|---|
| Enclosure | Standard Enclosure, Outdoor Enclosure |
| Voltage | 110-125 VAC, 50/60 Hz, 208-253 VAC, 50/60 Hz |
