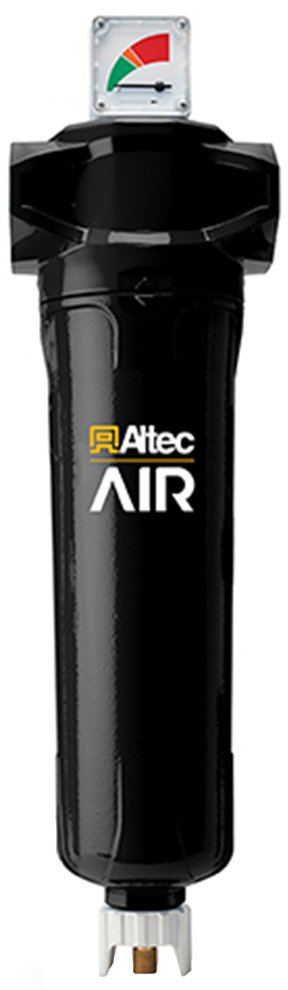

Altec AIR A Series Coalescing Filter
0.01 to 5 micron coalescing filter with automatic drain, rated up to 232 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Altec AIR A Series coalescing filter is capable of particle retention of up to 99.999% while also providing significantly reduced pressure loss. This means total protection of manufacturing equipment from dust carryover in the air system. The A Series filters have been tested to provide a saturated differential pressure of <1.8 PSI.
Overview and Features
Features
- 6 to 1500 SCFM capacities available
- Connection sizes from 1/8” to 3” NPT
- Differential pressure indicators on models 25 SCFM and up
- Pop-up indicators on 25 to 50 SCFM
- Gauge indicators on 75 to 1500 SCFM
- Automatic drain
- 4 element grades available:
- X5: 5 micron
- X1: 1 micron
- XA: 0.01 micron
- AC: 0.01 micron activated carbon
- ISO 8573-1: 2010
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 6 SCFM, 15 SCFM, 25 SCFM, 32 SCFM, 50 SCFM, 70 SCFM, 85 SCFM, 105 SCFM, 125 SCFM, 175 SCFM, 280 SCFM, 320 SCFM, 400 SCFM, 450 SCFM, 700 SCFM, 850 SCFM, 900 SCFM, 1250 SCFM, 1500 SCFM |
|---|---|
| Connection Size | 1/8" NPT, 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1.25" NPT, 1.5" NPT, 2" NPT, 2.5" NPT, 3" NPT |
| Filter Grade | 5 micron, 1 micron, 0.01 micron, 0.01 micron - activated carbon |
