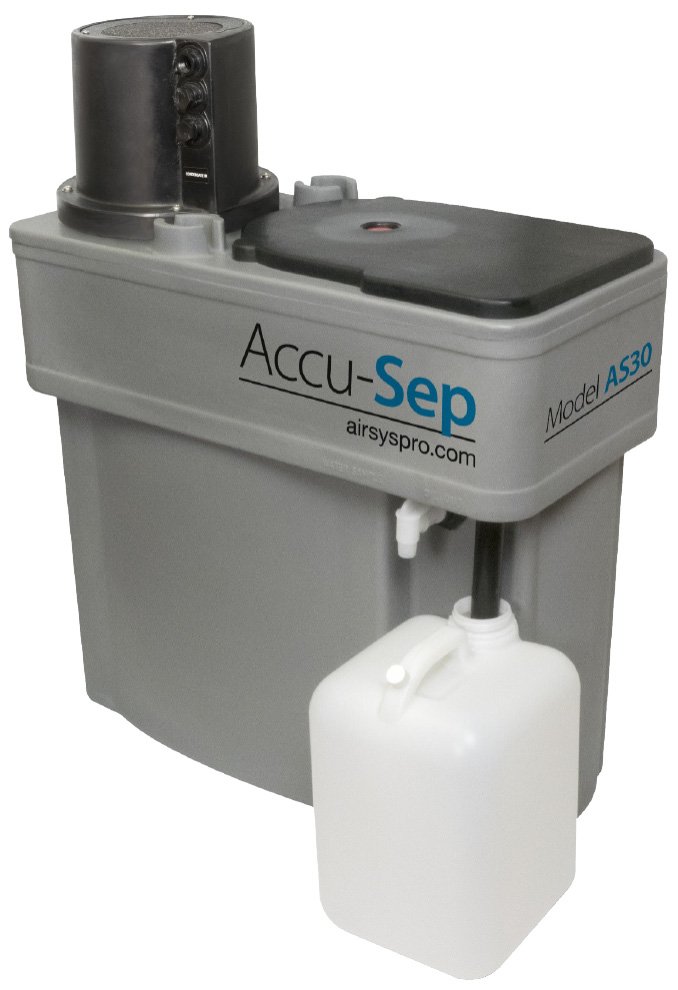

Air System Products Accu-Sep Series Oil Water Separator
Gravity activated oil water separator designed with multi-stage separations for 24 hour continuous operation
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Air System Products Accu-Sep Series Oil Water Separator uses multi-stage separation technology to remove lubricating oils from condensate streams. It first collects the sediment in a chamber to prevent rust, dirt, and scale from entering the main reservoir, which provides sufficient residence time for the oil to coagulate and float to the surface. Next, the pre-adsorption chamber removes the remaining oils in the solution or migrated to that chamber. Finally, the carbon beds ensure that the condensate meets or exceeds discharge limits.
Overview and Features
Features
- 150 to 2400 CFM capacities available
- Constructed of all non-corrosive materials
- Gravity activation
- Removable access lid
- Translucent oil container collects de-emulsified oil
- Red flow indicator
- Sample and reference jars
- No electrical connection required
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Size | 15 gallon, 30 gallon, 60 gallon, 120 gallon - two 60 gallon Accu-Sep's + one PSEQ2 Equalizer, 180 gallon - three 60 gallon Accu-Sep's + one PSEQ2 Equalizer, 240 gallon - four 60 gallon Accu-Sep's + one PSEQ2 Equalizer |
|---|---|
| Capacity | 150 CFM, 300 CFM, 600 CFM, 1200 CFM, 1800 CFM, 2400 CFM |
